Enginero User Guide

Property Based RFI is created from properties of the element, part, or assembly properties. Follow the below steps to create a Property Based RFI,

1. Click on the Manage Properties option under Enginero tab from the ribbon panel

Enginero Plugin Ribbon Panel

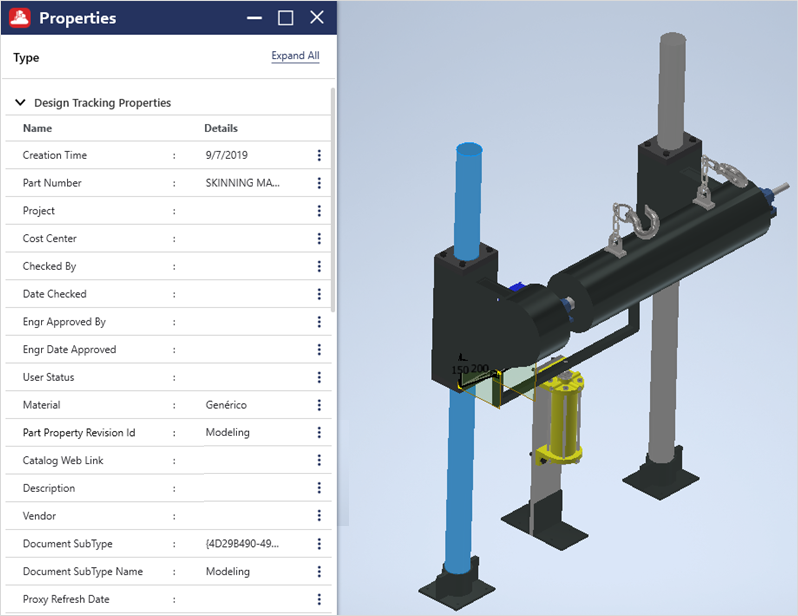

2. Select the element in the Inventor model. In properties window will shows all the properties about the selected element

Creating a Property Based RFI

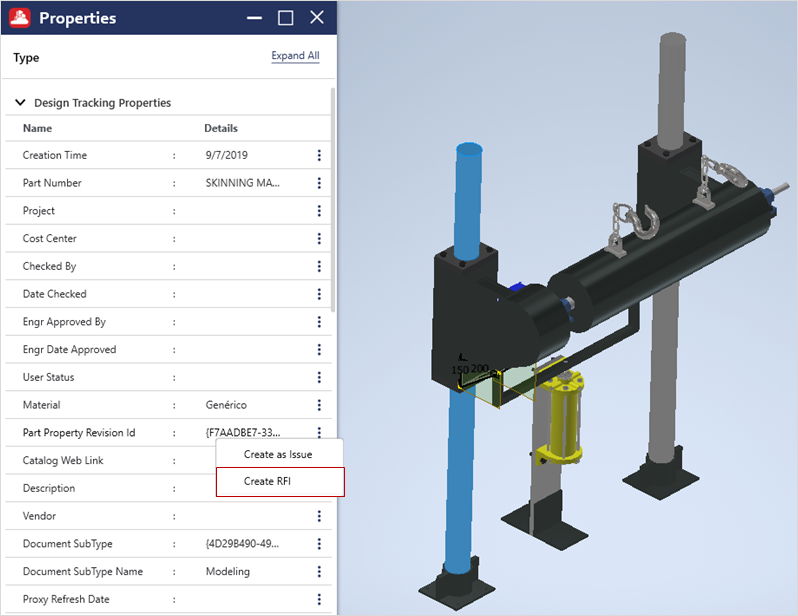

3. Click on the Ellipsis Icon in which element you need to create the RFI and select Create RFI option

Creating a Property Based RFI (Cont.)

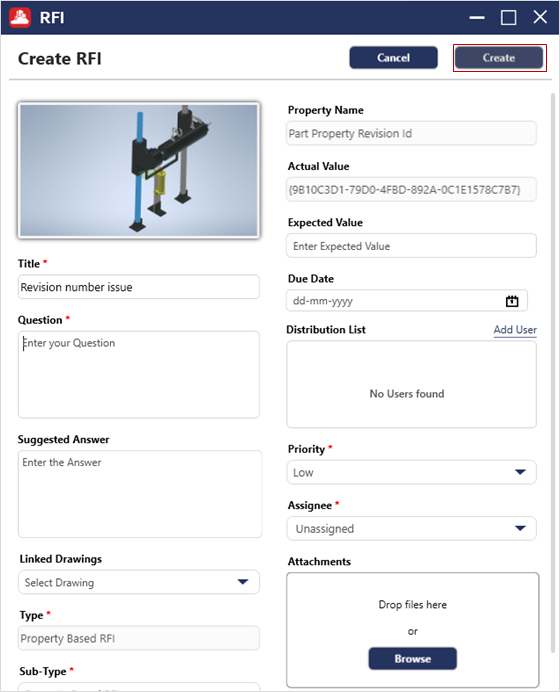

4. Enter the Mandatory Fields which will be marked with “*”, and click on the Create button to complete the process

Creating a Property Based RFI (Cont.)

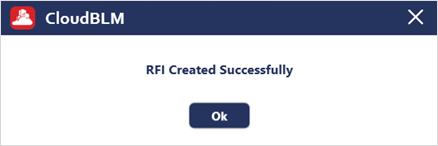

5. After the RFI is created, an acknowledgment message will be displayed

Creating a Property Based RFI (Cont.)
