Element Based RFI is queries related to the element of a model. Follow the below steps to create an Element Based RFI,


  1. Click on the Manage RFI option under Enginero tab from the ribbon panel

Enginero Plugin Ribbon Panel

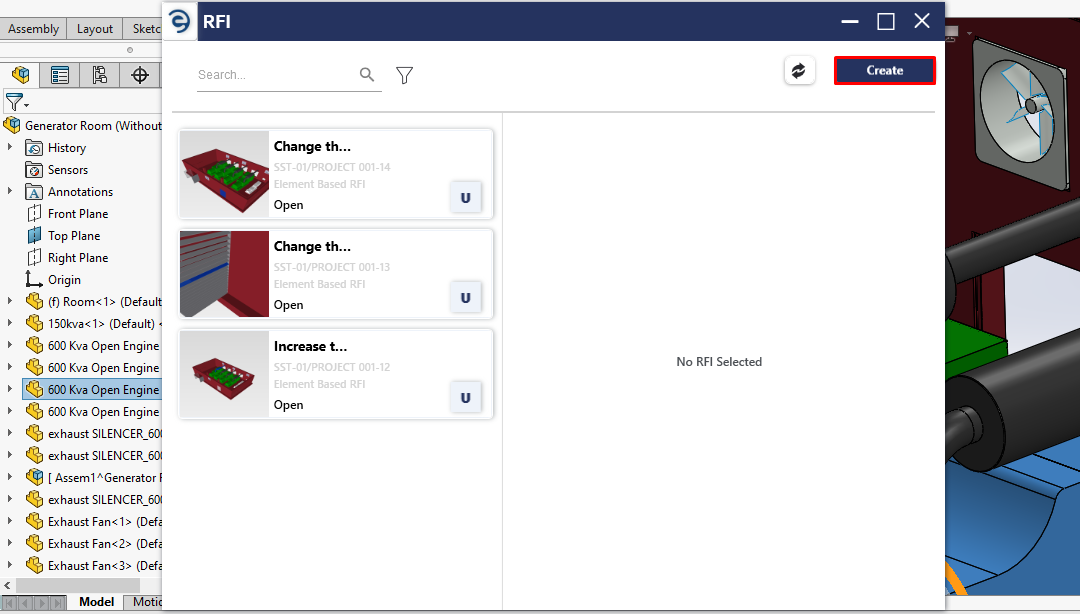

  1. Choose the part or sub-assembly from the model hierarchy in the SolidWorks model and click on the Create button in the Manage RFI interface.

Creating an Element Based RFI

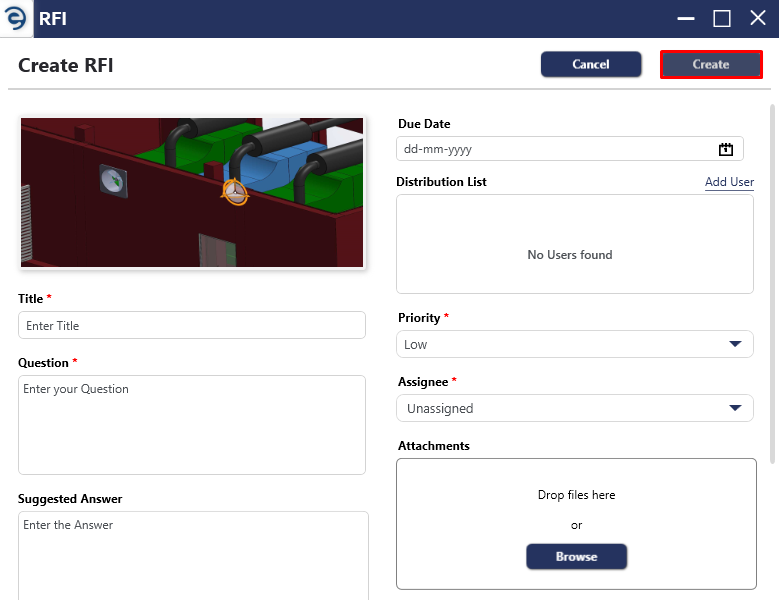

  1. Enter the Mandatory Fields which will be marked with “*”, and click on the Create button to complete the process

Creating an Element Based RFI (Cont.)

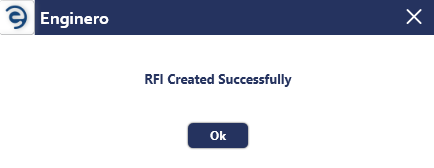

  1. After the RFI is created, an acknowledgement message will be displayed

Creating an Element Based RFI (Cont.)
