Property Based RFI is an RFI related to the properties of parts, or assemblies. Follow the below steps to create a Property Based RFI,

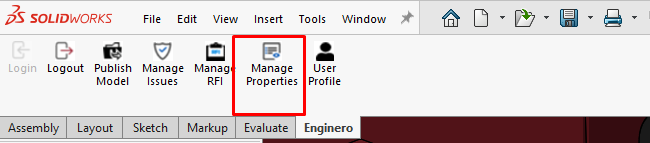

  1. Click on the Manage Properties option under the Enginero tab from ribbon panel

Enginero Plugin Ribbon Panel

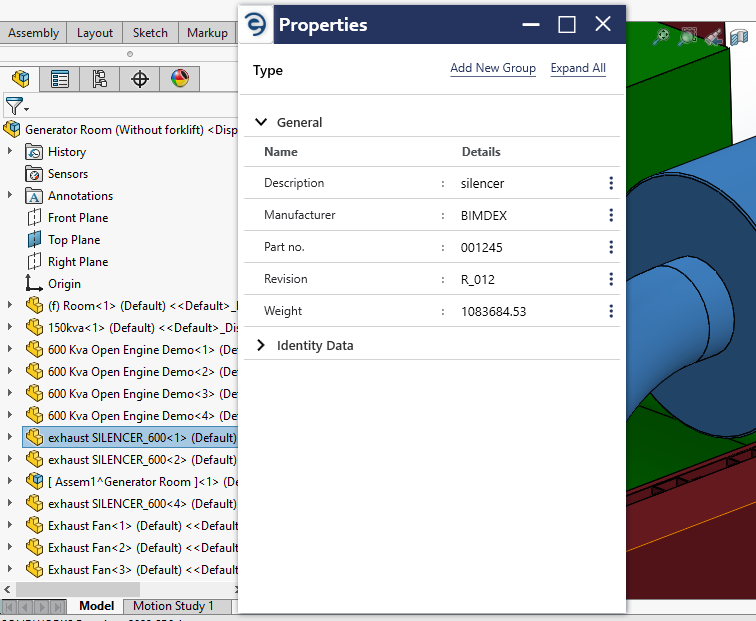

  1. Select the part or sub-assembly from the model hierarchy in the SolidWorks model to display its properties in the Manage Properties window

Creating a Property Based RFI

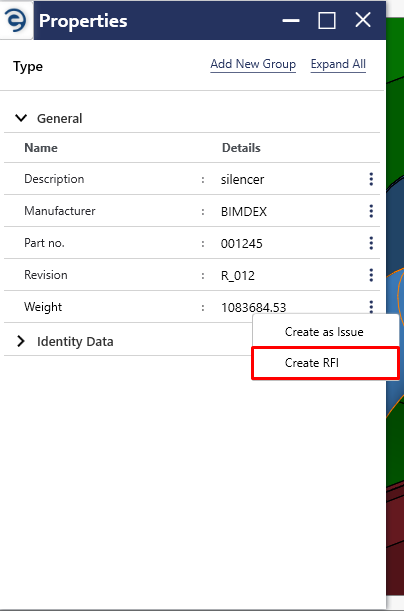

  1. Click on the Ellipsis icon next to the property for which the element needs to create an RFI and select the Create as RFI option

Creating a Property Based RFI (Cont.)

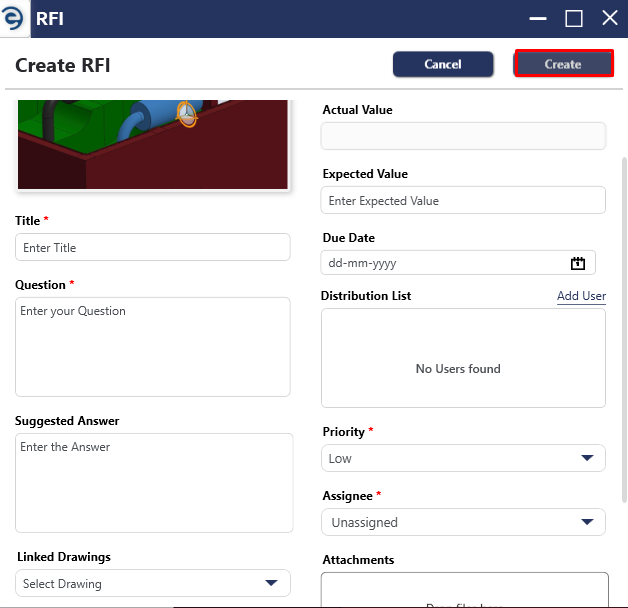

  1. Enter the Mandatory Fields which will be marked with “*”, and click on the Create button to complete the process

Creating a Property Based RFI (Cont.)

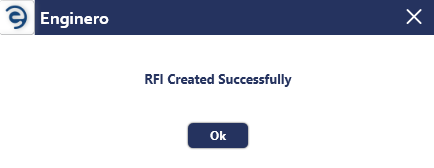

  1. After the RFI is created, an acknowledgement message will be displayed

Creating a Property Based RFI (Cont.)
