Element Based RFI is queries related to the element of a model. We can create Element based RFI using two methods,

Creating an Element Based RFI using RFI Tab

Follow the below steps to create an element-based RFI,

  1. Select Projects > My Projects and click on Model Viewer icon from the required Project

Project Selection

  1. Select the desired models from the directory and click on the Load button to view the models in the viewer

Creating an Element Based RFI using RFI Tab

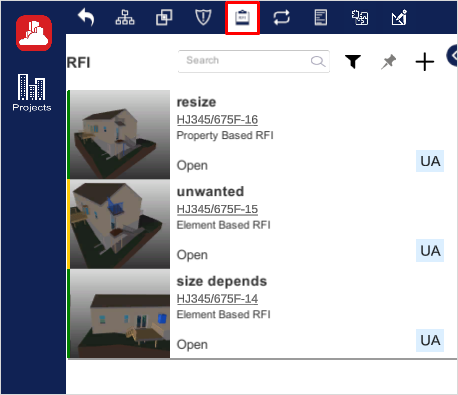

  1. Select the RFI tab to load all the RFI related to the model

Creating an Element Based RFI using RFI Tab (Cont.)

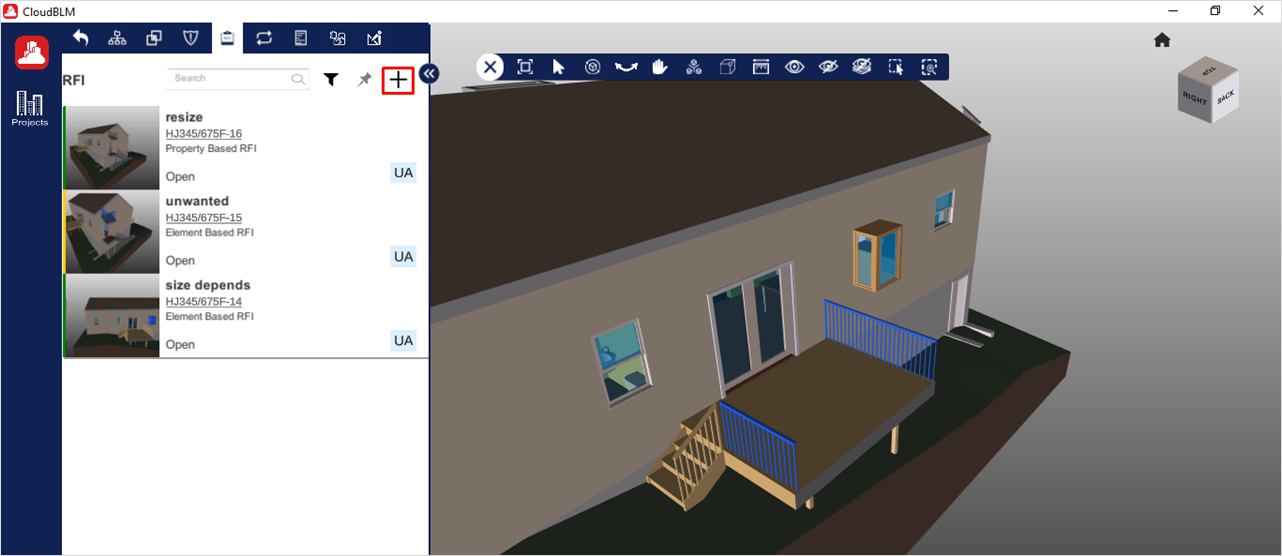

  1. Select an element in the viewer and click on the Create RFI (“+” ) Icon

Creating an Element Based RFI using RFI Tab (Cont.)

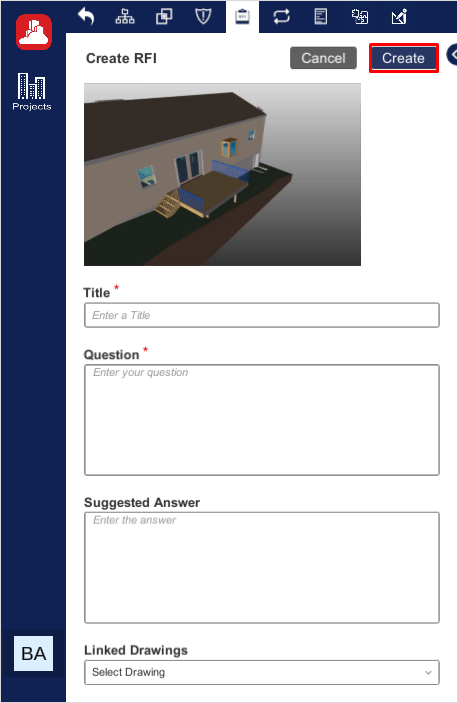

  1. Enter the Mandatory Fields which will be marked with “*”, and click on the Create button to complete the process

Creating an Element Based RFI using RFI Tab (Cont.)


Creating an Element Based RFI using Group Tab

Follow the below steps to create an element-based RFI,

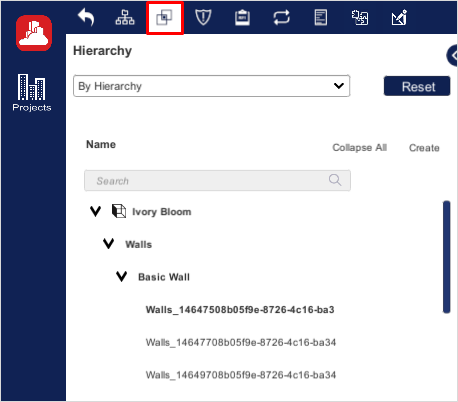

  1. Select the Groups Tab and choose an element from the Hierarchy

Creating an Element Based RFI using Group Tab (Cont.)

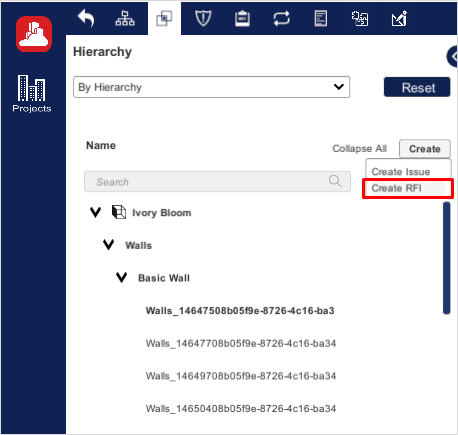

  1. Click on the Create Button and select Create RFI option

Creating an Element Based RFI using Group Tab (Cont.)

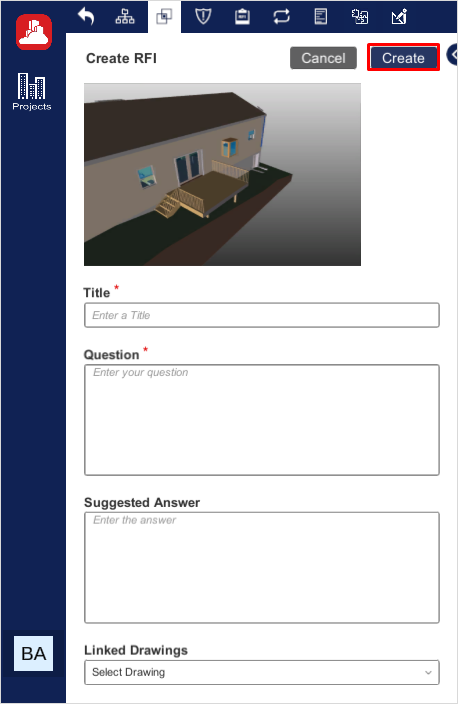

  1. Enter the Mandatory Fields which will be marked with “*”, and click on the Create button to complete the process

Creating an Element Based RFI using Group Tab (Cont.)
