Creating Property Based RFI

Property Based RFI is created from properties of the element, part, or assembly properties. We can create Element based RFI using two methods,

Creating a Property Based RFI using Properties Tab

Follow the below steps to create a property-based issue,

Select Projects > My Projects and click on Model Viewer icon from the required Project

Project Selection

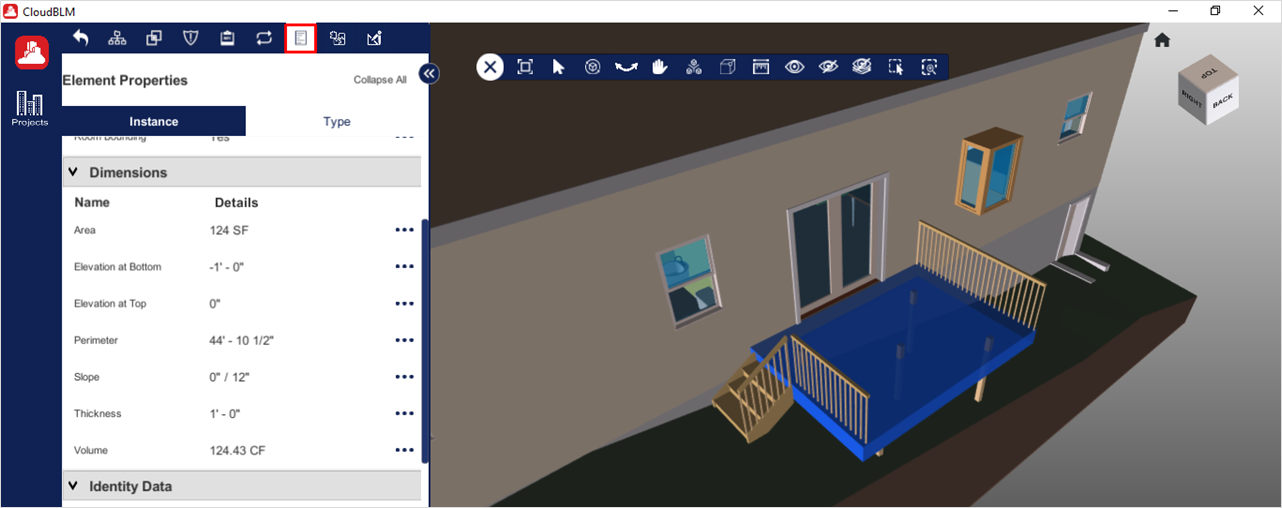

Select the desired models from the directory and click on the Load button to view the models in the viewer

Creating a Property based RFI using Properties Tab

Creating a Property based RFI using Properties Tab (Cont.)

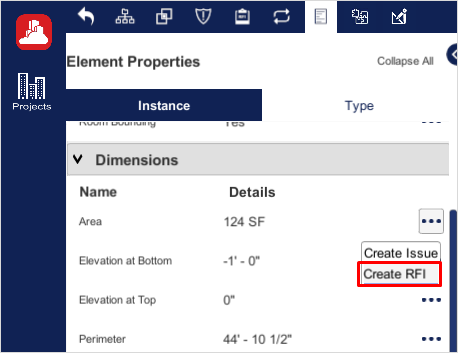

Click on the Ellipsis Icon in which element you need to create the RFI and select Create RFI option

Creating a Property based RFI using Properties Tab (Cont.)

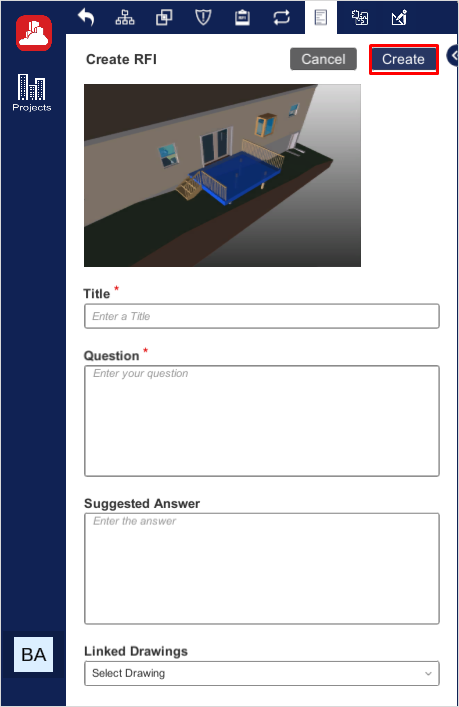

Enter the Mandatory Fields which will be marked with “*”, and click on the Create button to complete the process

Creating a Property based RFI using Properties Tab (Cont.)

Creating a Property Based RFI using Group Tab

Follow the below steps to create a property-based issue,

Select Group Tab. Mouse hover the element to view the options and click on the Property Icon

Creating a Property based RFI using Hierarchy Tab (Contd.)

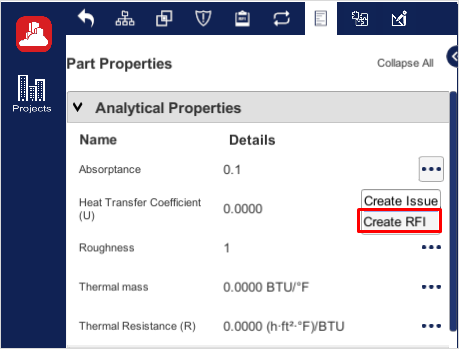

Click on the Ellipsis Icon in which element you need to create the RFI and select Create RFI option

Creating a Property based RFI using Hierarchy Tab (Contd.)

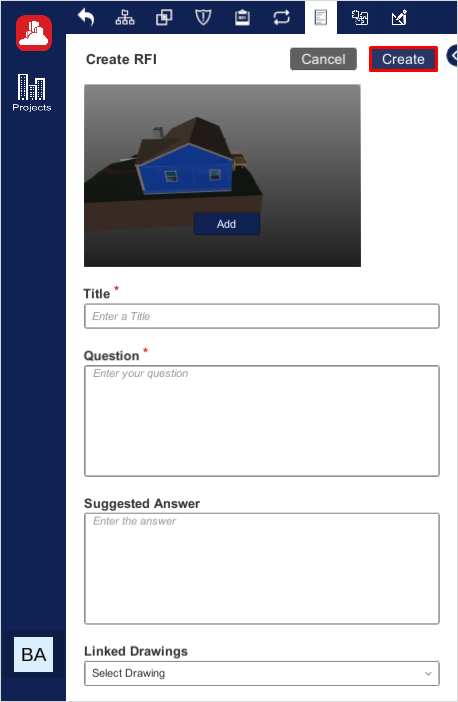

Enter the Mandatory Fields which will be marked with “*”, and click on the Create button to complete the process

Creating a Property based RFI using Hierarchy Tab (Contd.)
