Element Based issue is an issue related to model elements. Follow the below steps to create an Element Based issue,


  1. Click on the Manage Issues option under the Enginero tab from the ribbon panel

 Plugin Ribbon Panel

  1. Choose the part or sub-assembly from the model hierarchy in the SolidWorks model and click on the Create button in the Manage Issue interface.

Creating an Element Based Issue

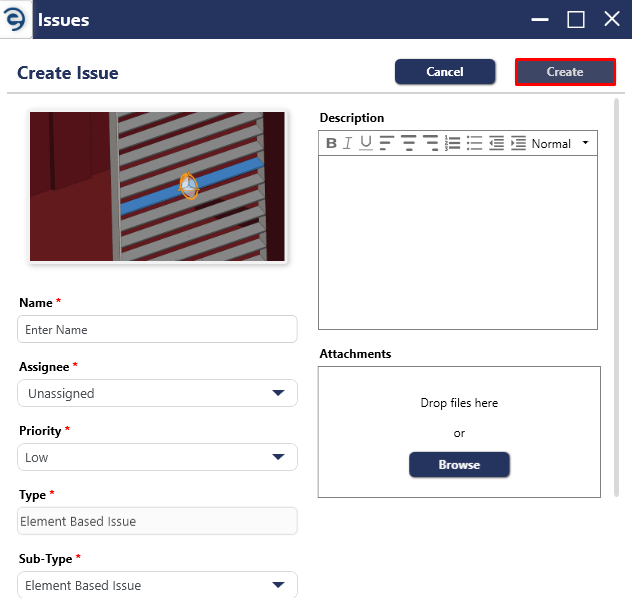

  1. Enter the mandatory fields which will be marked with “*”, and click on the Create button to complete the process

Creating an Element Based Issue (Cont.)

  1. After the Issue is created, an acknowledgement message will be displayed

Creating an Element Based Issue (Cont.)
