Standalone issue is not connected to any module-based issue. These types of issues can be general/common issues faced within the project. Follow the below steps to create a standalone issue,

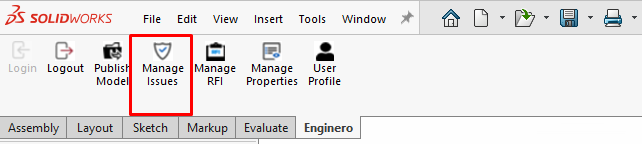

  1. Click on the Manage Issues option under the Enginero tab from the ribbon panel

 Plugin Ribbon Panel

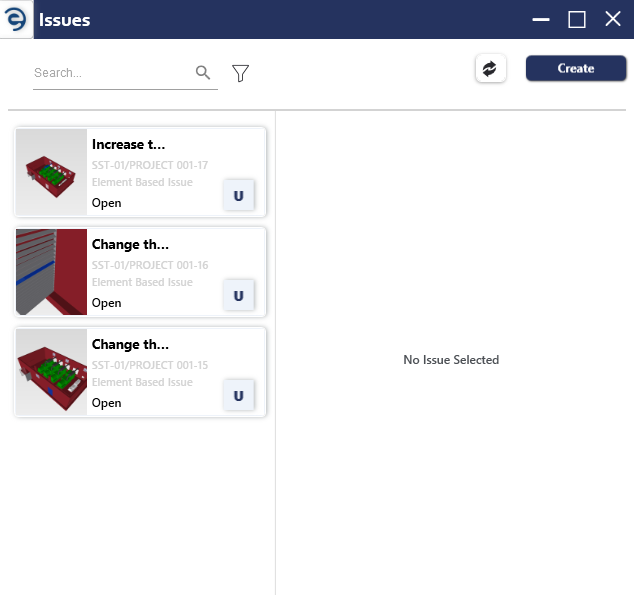

  1. Displays the Issues related to the model opened in SolidWorks. Click on the Create button to create a standalone issue

Creating a standalone Issue

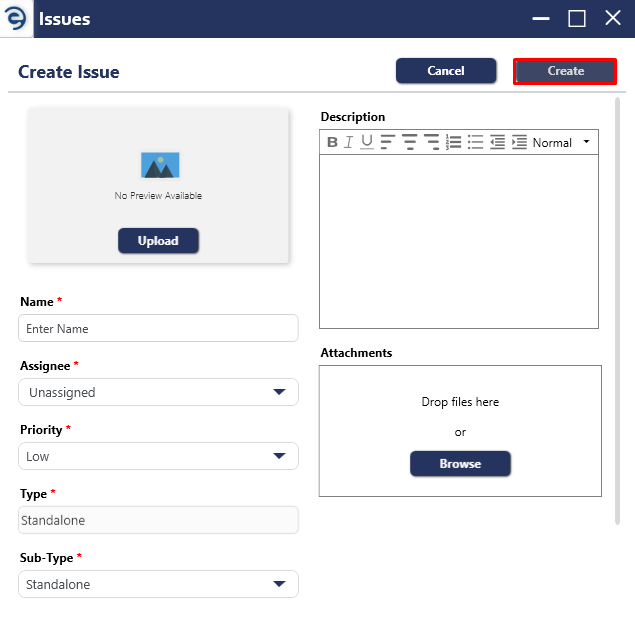

  1. Enter the mandatory fields which will be marked with “*”, and click on the Create button to complete the process

Creating a Standalone Issue (Cont.)

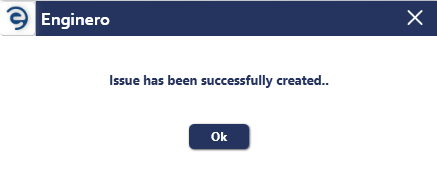

  1. After the Issue is created, an acknowledgement message will be displayed

Creating a standalone Issue (Cont.)
