Property Based Issue is created from properties of the element, part, or assembly properties. Follow the below steps to create a Property Based issue,


  1. Click on the Manage Properties option under the Enginero tab from the ribbon panel

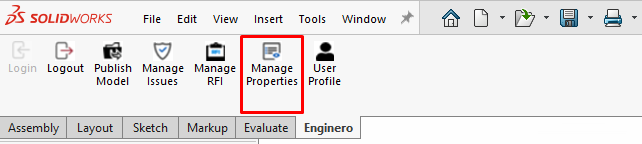

 Plugin Ribbon Panel

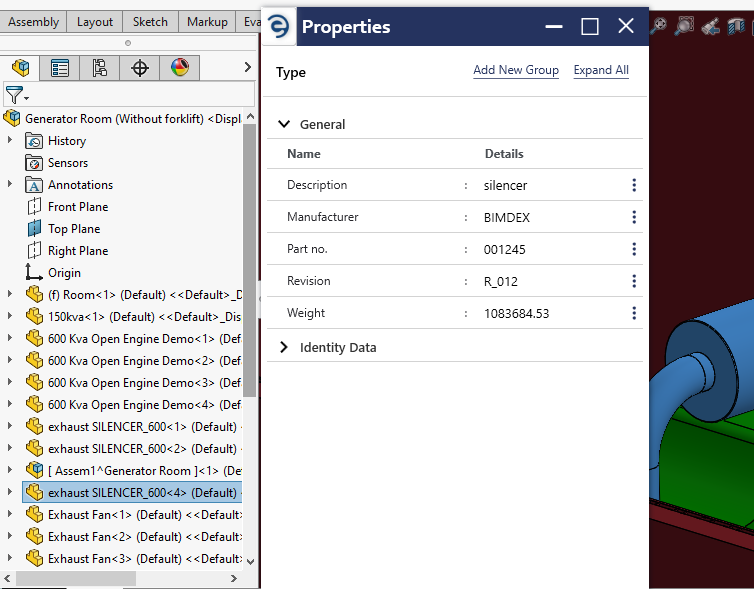

  1. Select the part or sub-assembly from the model hierarchy in the SolidWorks model to display its properties in the Manage Properties window

Creating a Property Based Issue

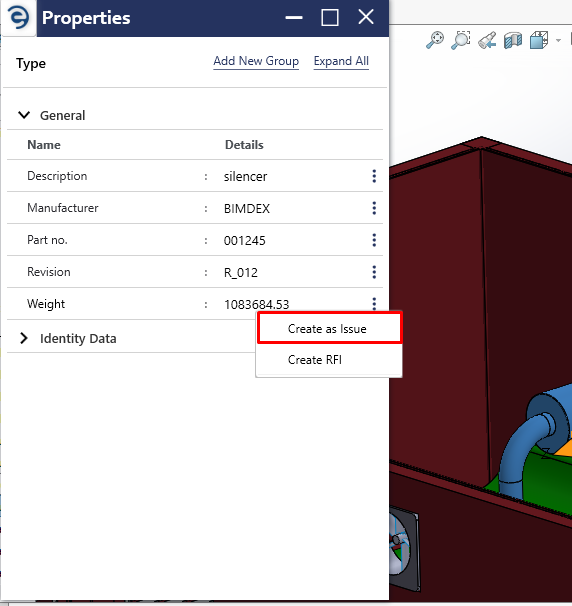

  1. Click on the Ellipsis icon next to the property for which the element needs to create an issue and select the Create as Issue option

Creating a Property Based Issue (Cont.)

  1. Enter the mandatory fields which will be marked with “*”, and click on the Create button to complete the process


Creating a Property Based Issue (Cont.)

  1. After the Issue is created, an acknowledgement message will be displayed

Creating a Property Based Issue (Cont.)
