The Link Image option enables users to link the Images, including JPG, PNG, TIFF, and BMP files fetched from Design module within the Enginero project to the active workshared Revit model. Follow the step below to link the Image

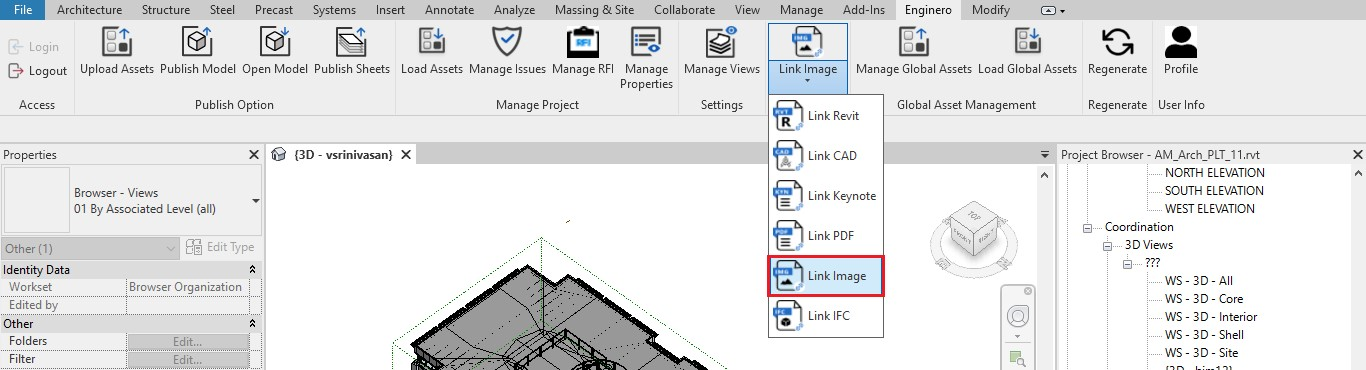

  1. Click on the Link Image option located under the Enginero tab from the ribbon panel

Link Image

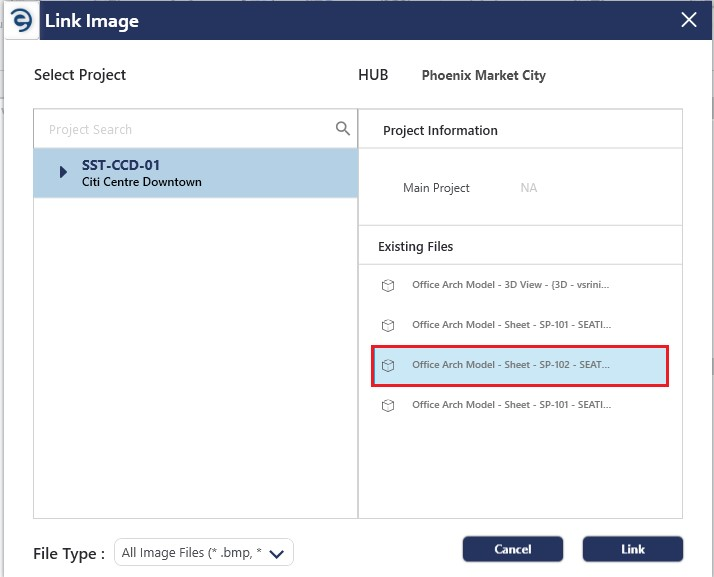

  1. Choose the necessary Image from the Project

Link Image (Cont.)

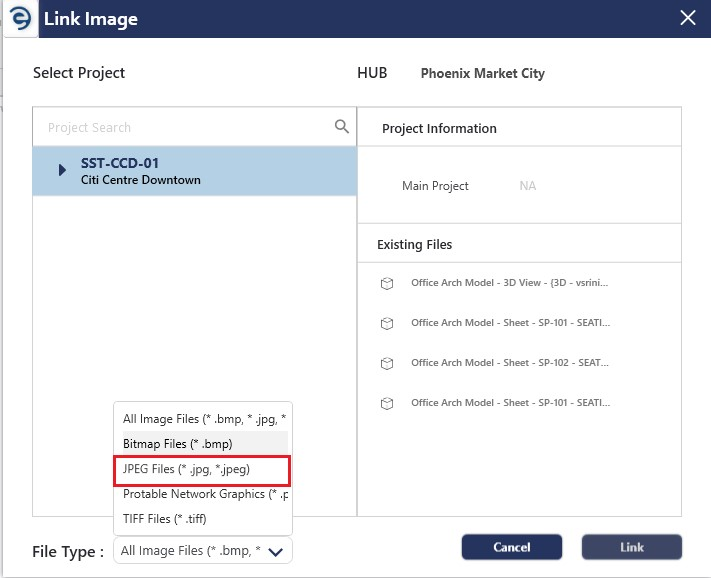

  1. With the help of File Type field, users can narrow down the selection results

Link Image (Cont.)

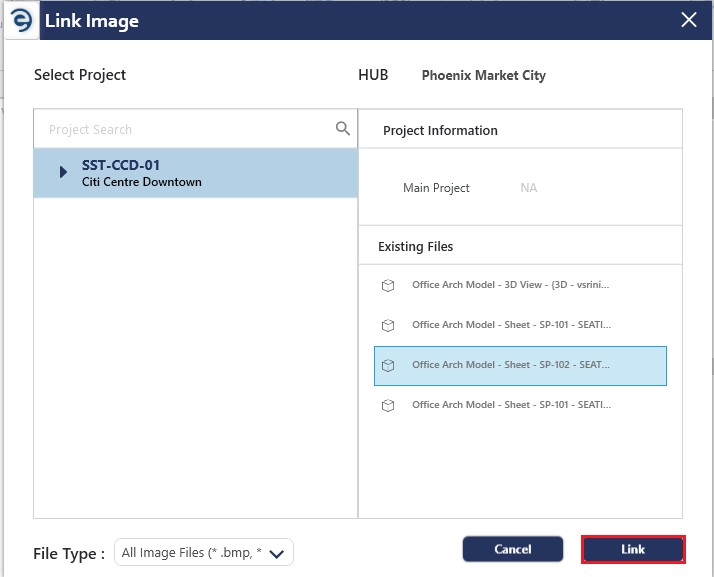

  1. Once the selection is completed, click the Link button to link the selected file into the active Revit model

Link Image (Cont.)

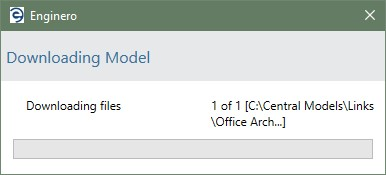

  1. Now, the selected file is downloaded and linked to the active Revit model

Link Image (Cont.)

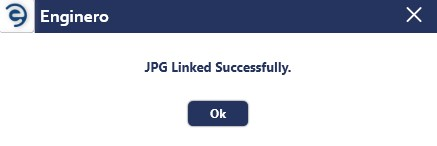

  1. After successfully linking the Image, an acknowledgement message will be displayed

Link Image (Cont.)

  1. Enginero displays a warning pop-up when users attempts to link a Image in Revit that is already linked

Link Image (Cont.)
