The Link PDF option enables users to link the pdf files fetched from Document module within the Enginero project to the active workshared Revit model. Follow the step below to link the pdf file

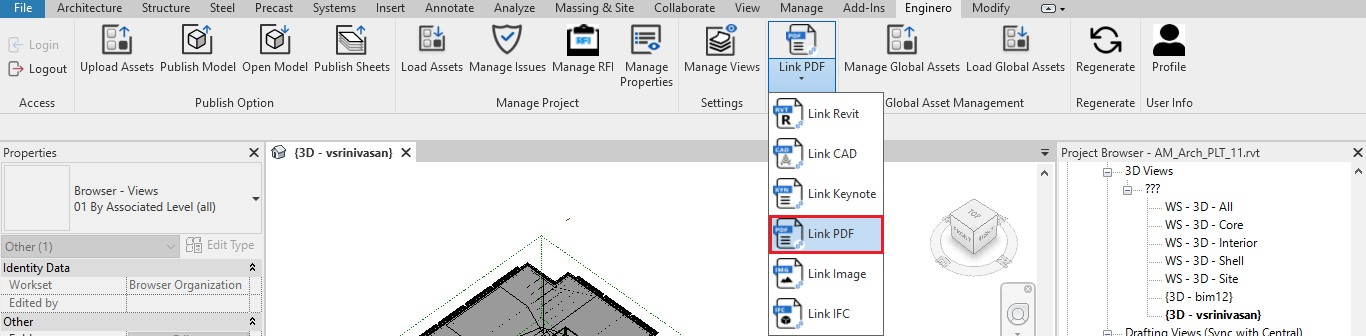

  1. Click on the Link PDF option located under the Enginero tab from the ribbon panel

Link PDF

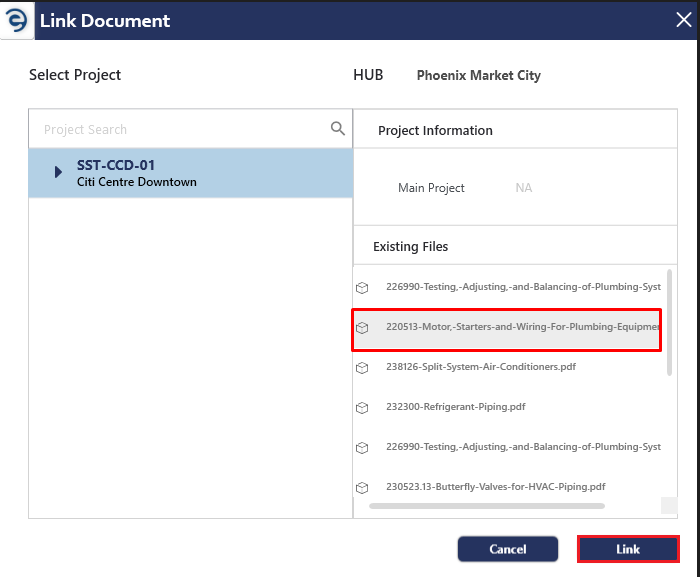

  1. Choose the necessary pdf file from the Project and click the Link button to link the selected file into the active Revit model

Link PDF (Cont.)

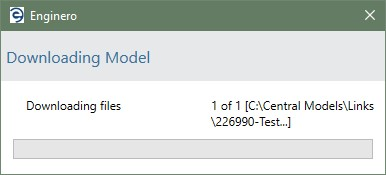

  1. Now, the selected file is downloaded and linked to the active Revit model

Link PDF (Cont.)

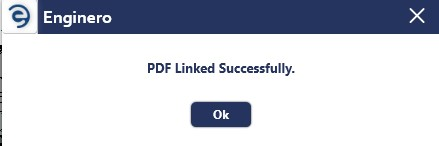

  1. After successfully linking the pdf file, an acknowledgement message will be displayed

Link PDF (Cont.)

  1. Enginero displays a warning pop-up when users attempts to link a Keynote in Revit that is already linked

Link PDF (Cont.)
