The Link IFC option enables users to link the IFC Files, including IFCXML and IFCZIP files fetched from Design module within the Enginero project to the active workshared Revit model. Follow the step below to link the IFC file,

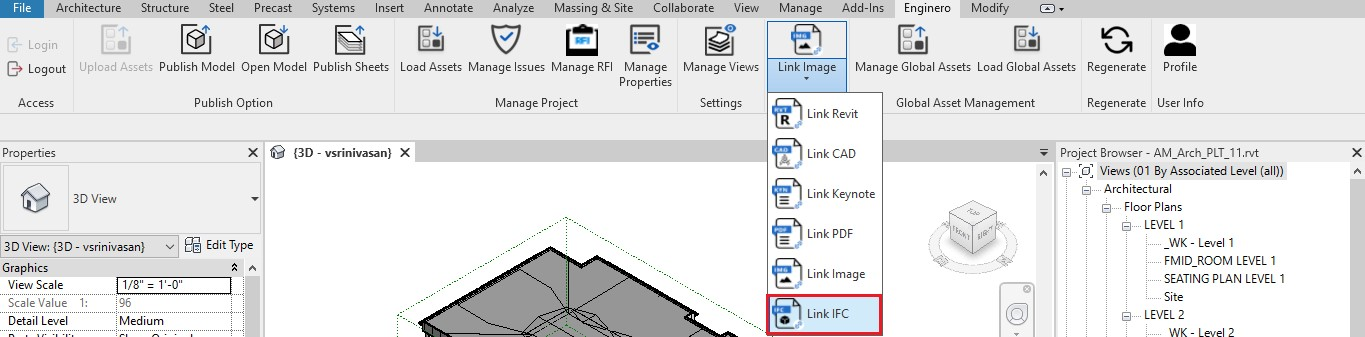

  1. Click on the Link IFC option located under the Enginero tab from the ribbon panel

Link IFC

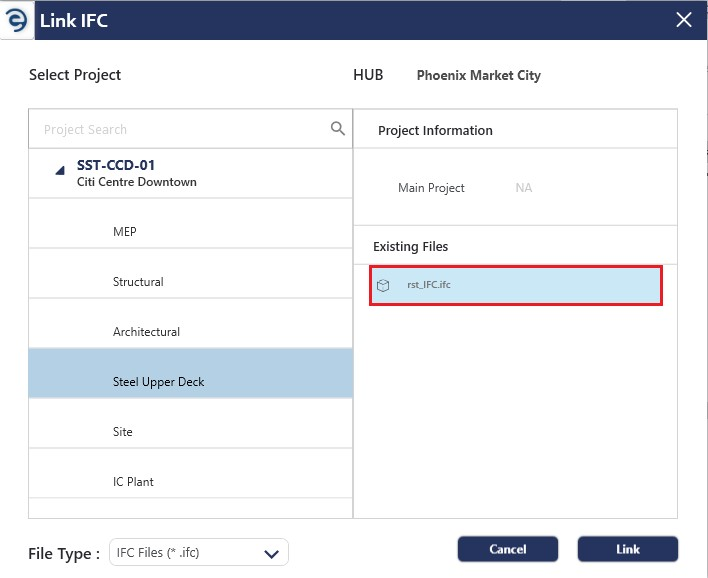

  1. Choose the necessary IFC File from either the Project or its associated team.

Link IFC (Cont.)

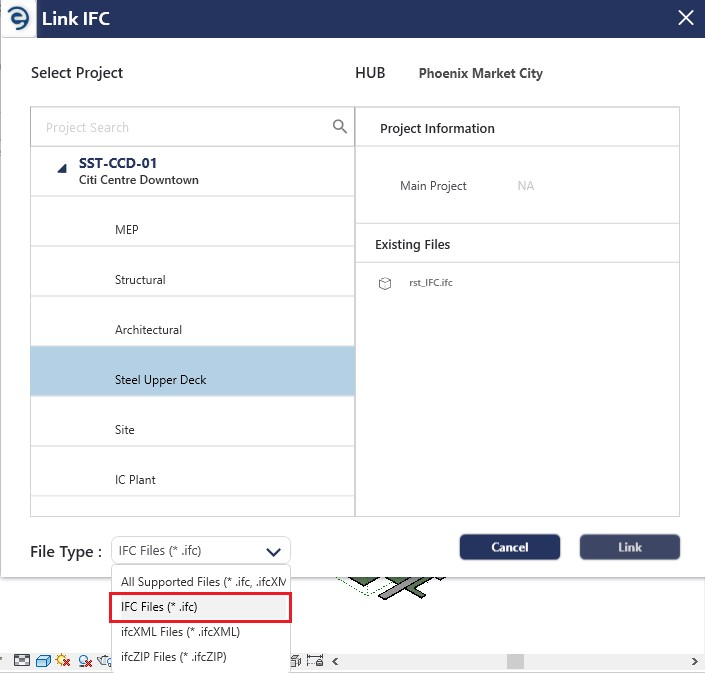

  1. With the help of File Type field, users can narrow down the selection results

Link IFC (Cont.)

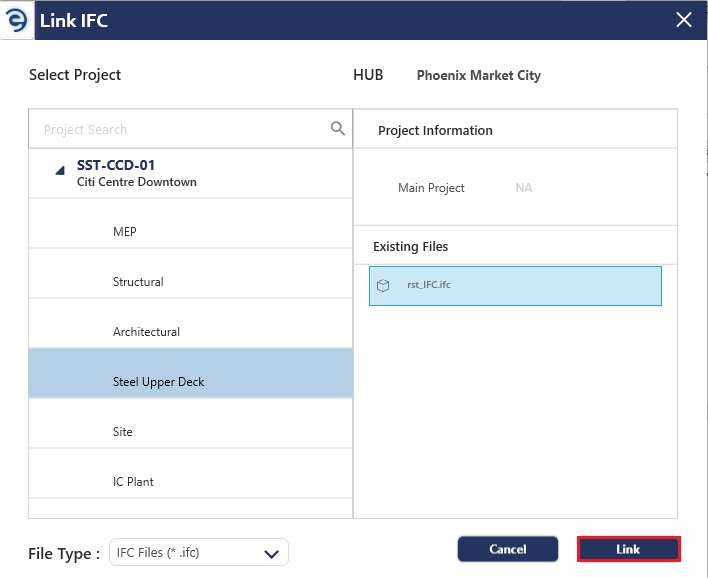

  1. Once the selection is completed, click the Link button to link the selected file into the active Revit model

Link IFC (Cont.)

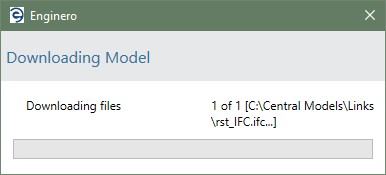

  1. Now, the selected file is downloaded and linked to the active Revit model

Link IFC (Cont.)

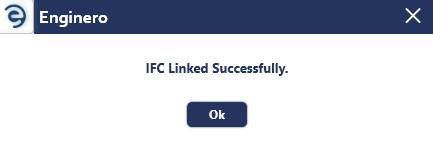

  1. After successfully linking the IFC file, an acknowledgement message will be displayed

Link IFC (Cont.)

  1. Enginero displays a warning pop-up when users attempts to link a IFC file in Revit that is already linked

Link IFC (Cont.)
