Creating Element Based Issue

The Element Based Issue is an issue related to model elements. Users can create an Element Based Issue using two methods,

Creating an Element Based Issue using Issue Tab

Follow the below steps to create an element based issue,

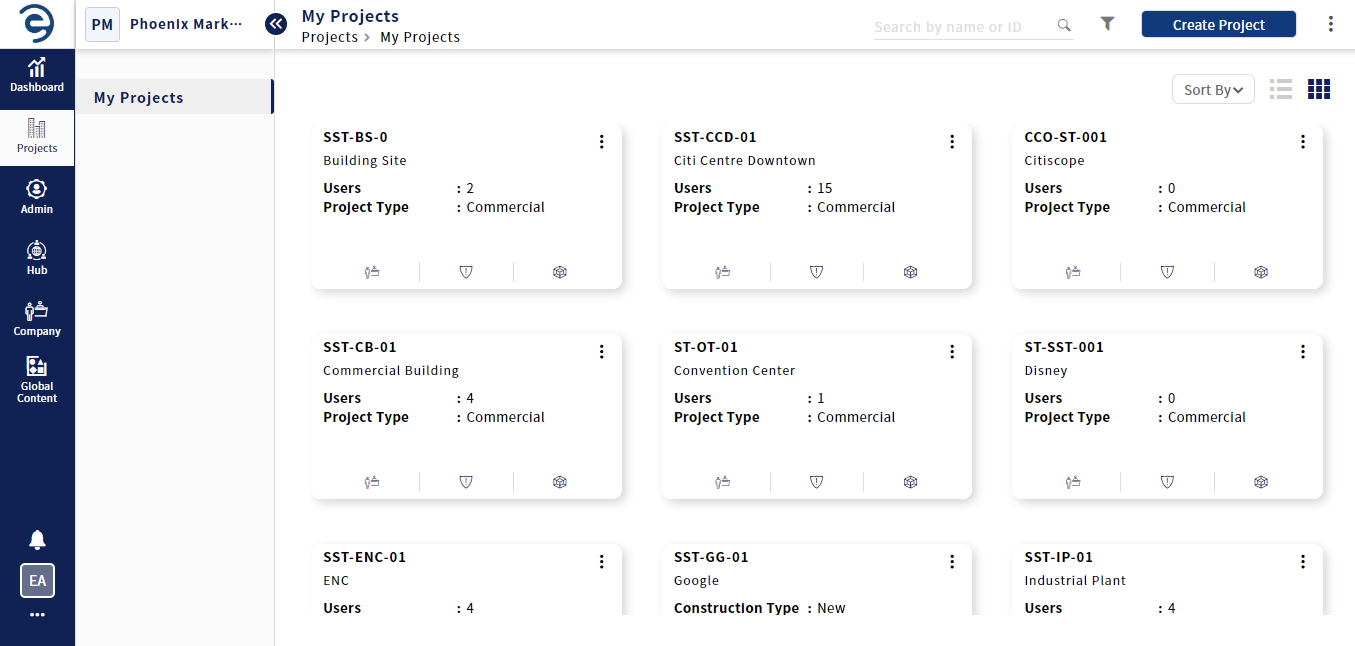

Choose the required Project

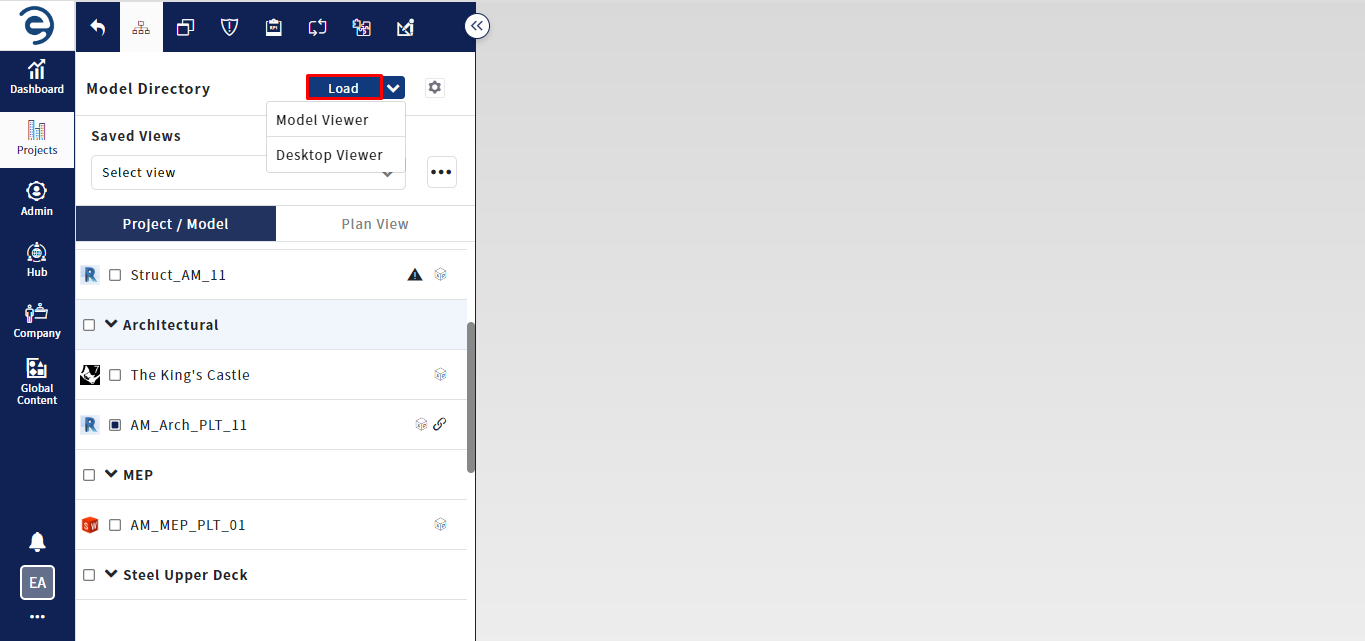

Select Model Viewer module in the inner side Navigation and select the desired models from the directory to load them into the viewer by clicking directly on the Load button or choosing a preferred Viewer option from the drop-down

Loading a Model

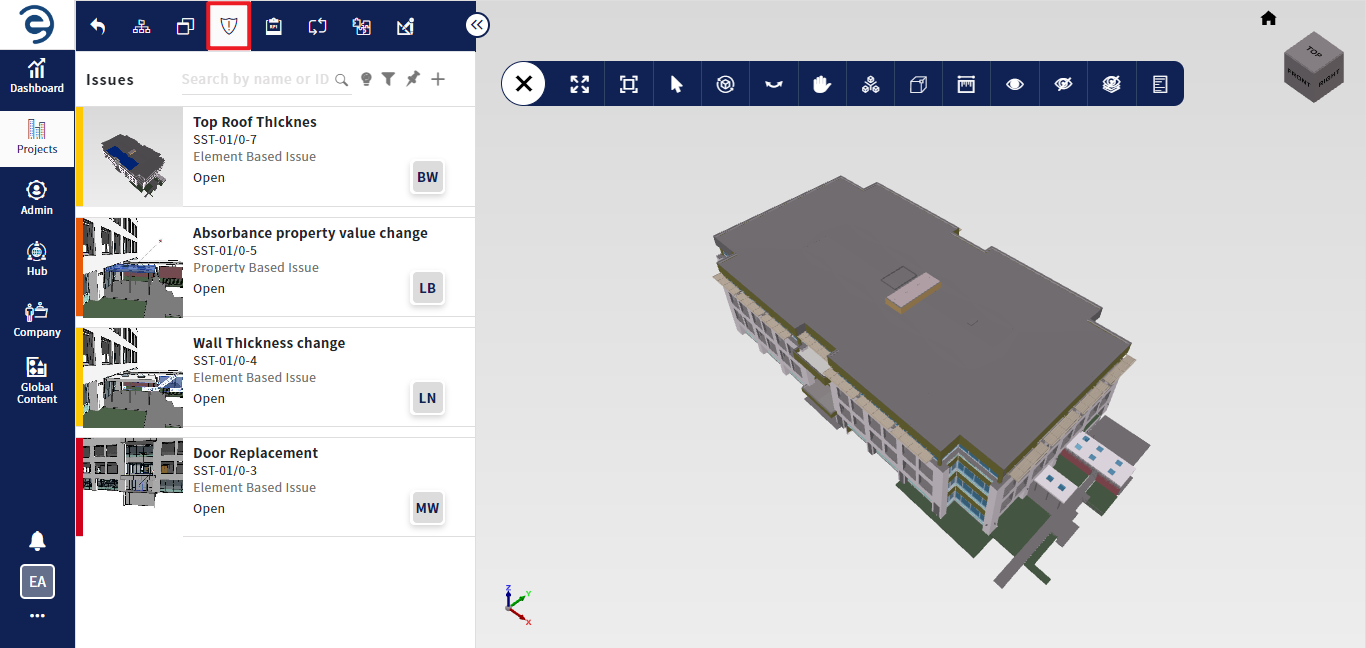

Once the model is loaded, click on the Issue tab to view all the issues related to the loaded model

Creating an Element based Issue using Issue Tab

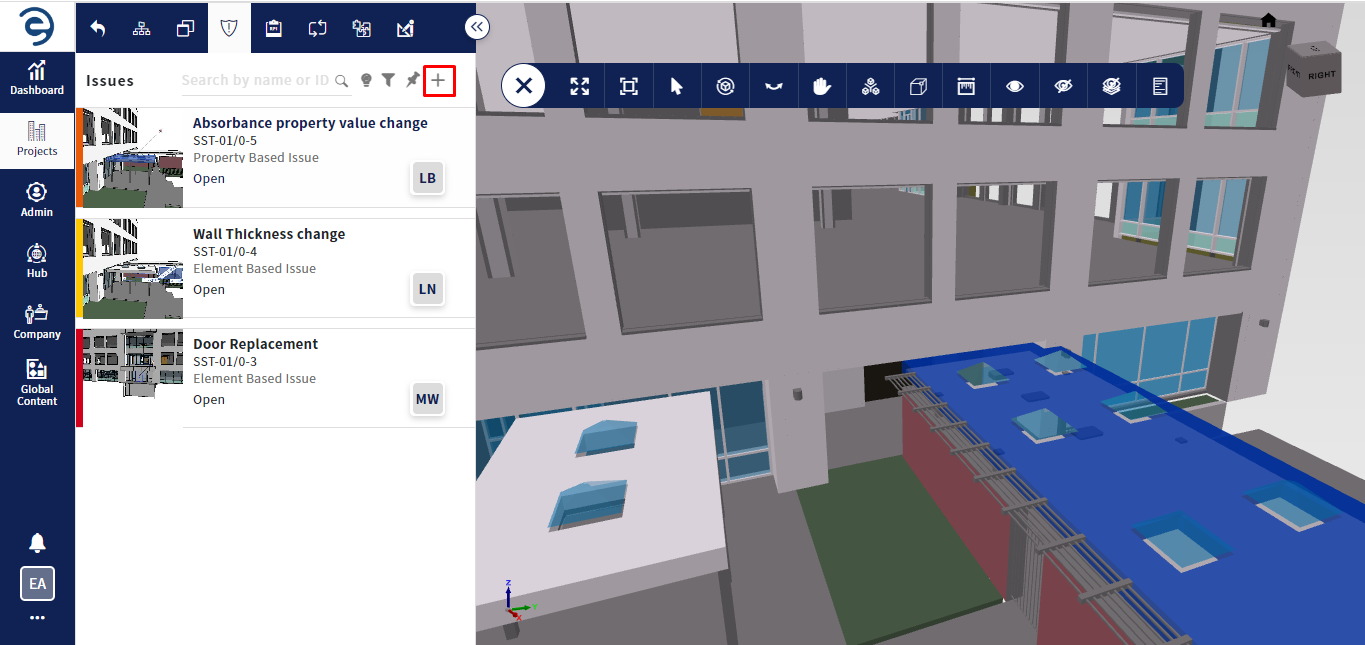

Select the element from the viewer which has an element issue and click on the Create Issue (“+”) icon

Creating an Element based Issue using Issue Tab (Cont.)

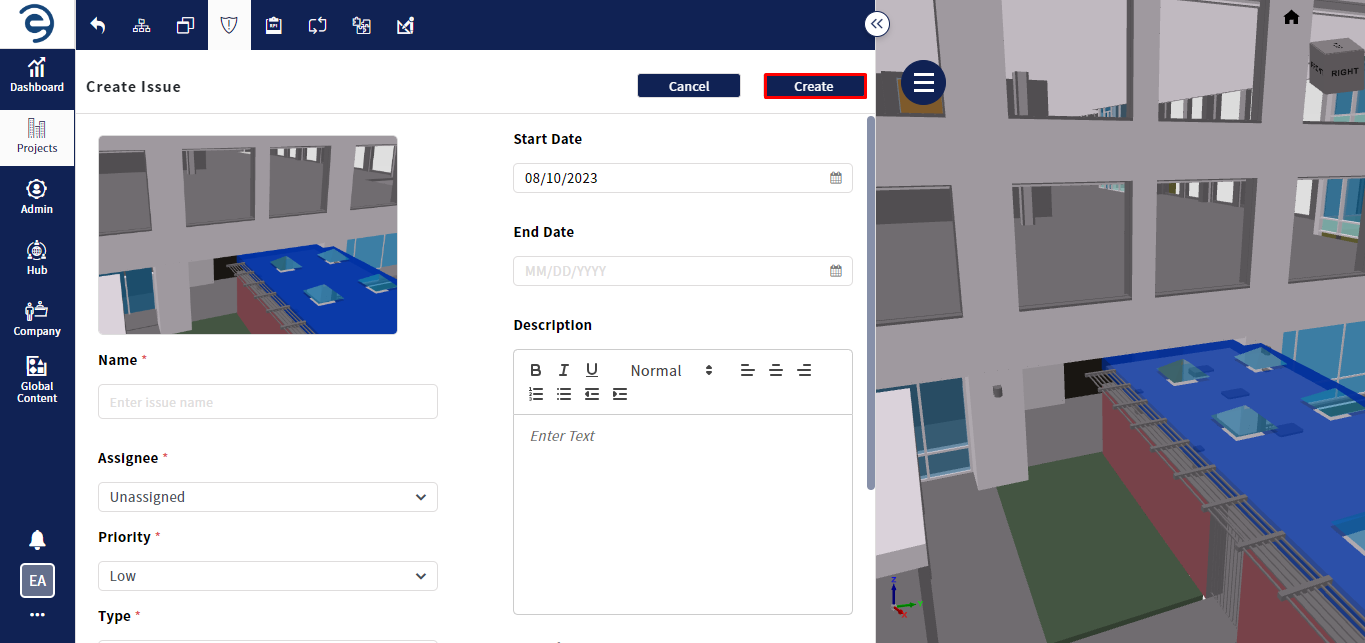

Enter the Mandatory Fields which will be marked with “*”, and click on the Create button to complete the process

Creating an Element based Issue using Issue Tab (Cont.)

Creating an Element Based Issue using Hierarchy Tab

Follow the below steps to create an element based issue,

Choose the required Project

Select Model Viewer module in the inner side Navigation and select the desired models from the directory to load them into the viewer by clicking directly on the Load button or choosing a preferred Viewer option from the drop-down

Loading a Model

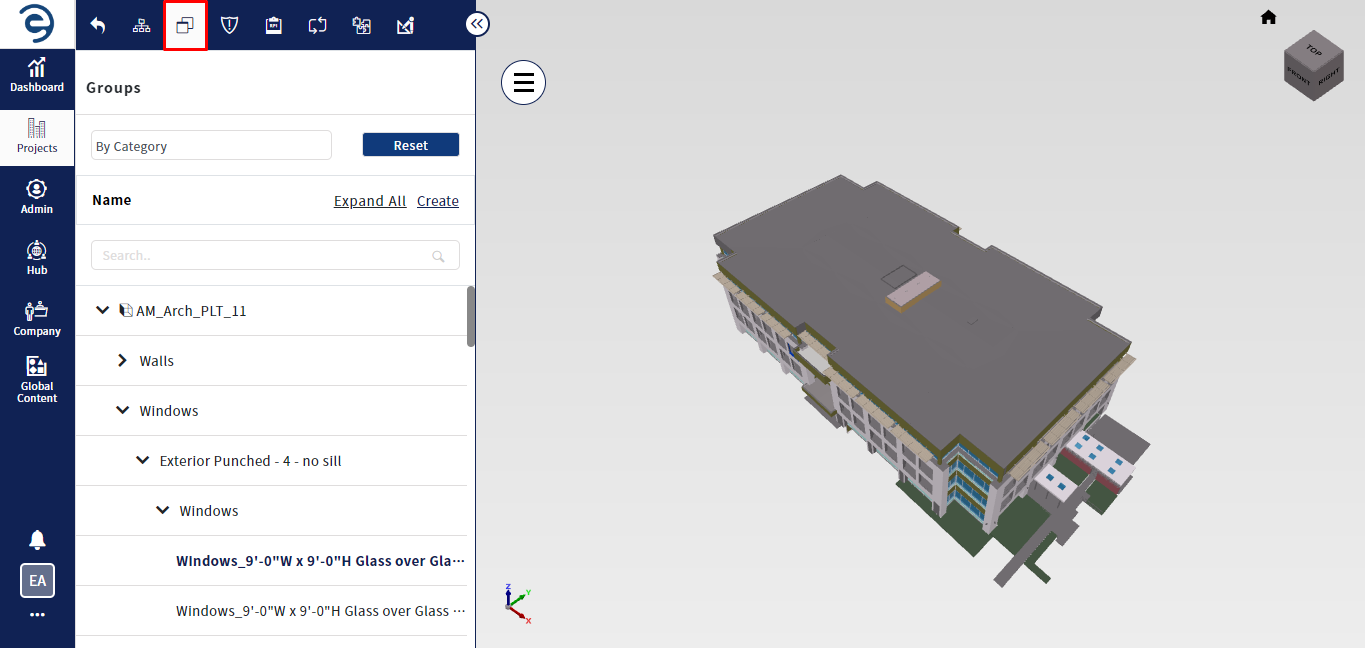

Select the Hierarchy tab and choose the element from the hierarchical structure that has an element issue

Creating an Element based Issue using Hierarchy Tab

Creating an Element based Issue using Hierarchy Tab (Cont.)

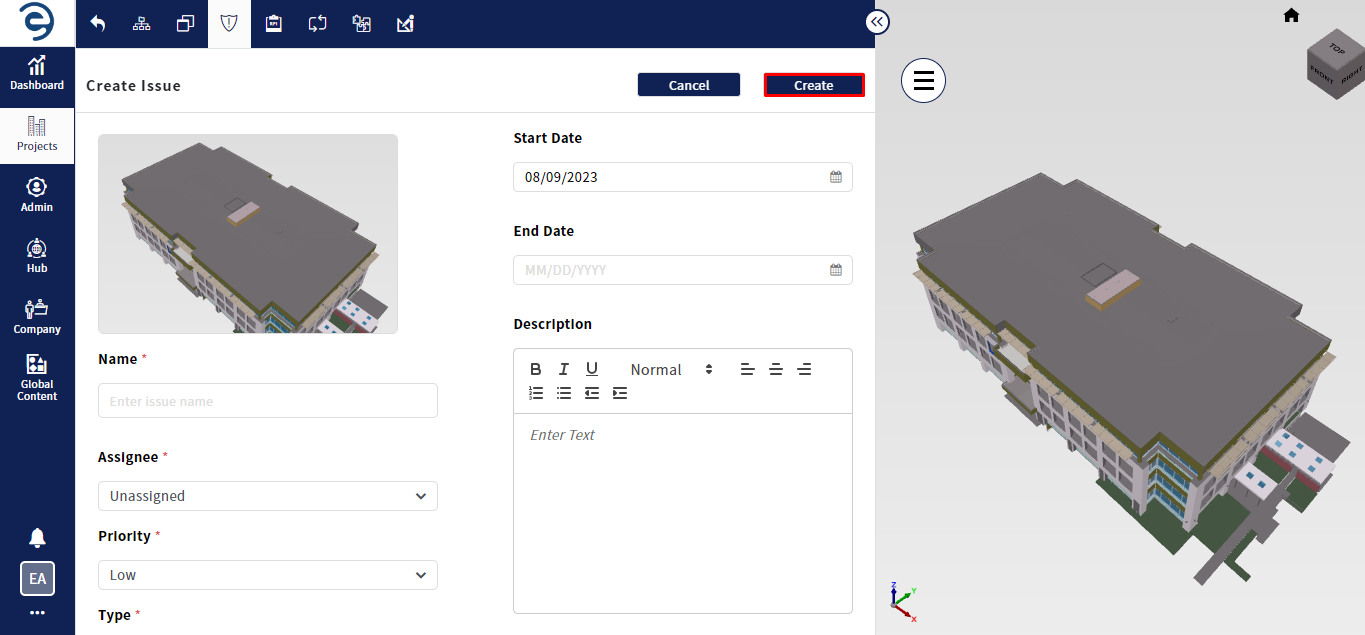

Enter the Mandatory Fields which will be marked with “*”, and click on the Create button to complete the process

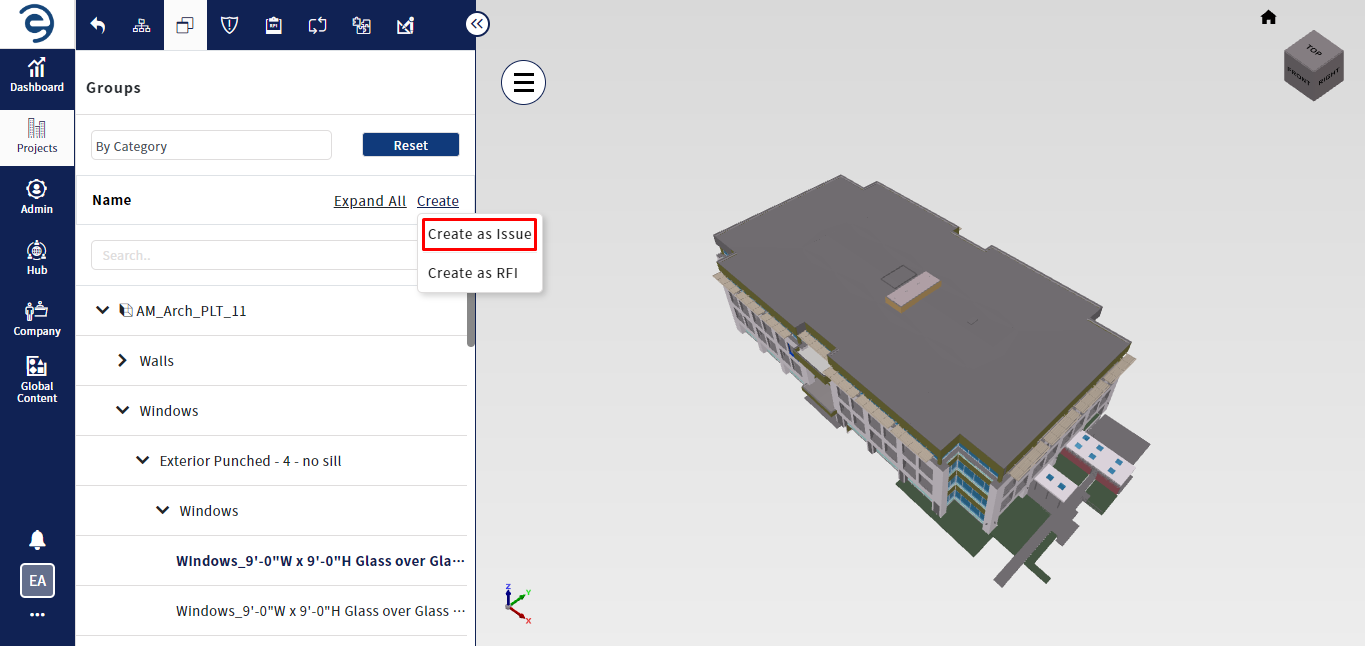

Creating an Element based Issue using Groups Tab (Cont.)
