Clash Based Issue is created from clashes. To create a Clash Based Issue by following the below steps,

  1. Select Projects > My Projects and click on Model Viewer icon from the required Project

Project Selection

  1. Select the desired models from the directory and click on the Load button to view the models in the viewer

Creating a Clash based Issue

  1. Select Clash Tab and select the Coordination Set and Test Name

Creating a Clash based Issue (Cont.)

  1. Click on the Load Set button to view the clashes in viewer related to the test

Creating a Clash based Issue (Cont.)

  1. Select the Clashes from the list. Click on the Ellipsis Button and choose to Create as Issue option


Creating a Clash based Issue (Cont.)

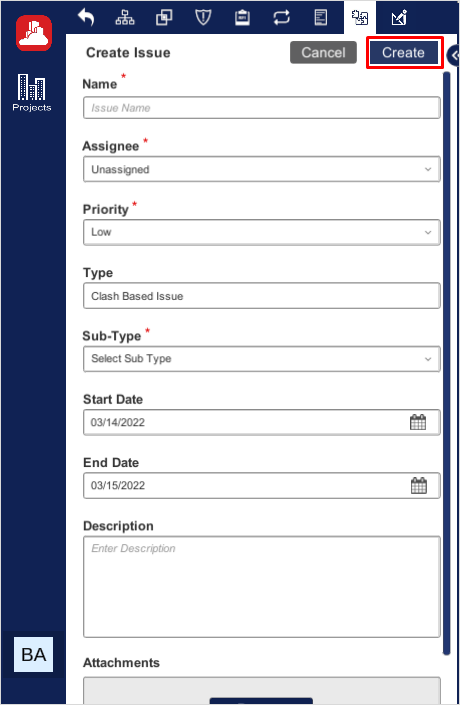

  1. Enter the Mandatory Fields which will be marked with “*”, and click on the Create button to complete the process

Creating a Clash based Issue (Cont.)
