The Clash Result module allows users to access clash results based on the selected coordination set and clash test. Within this module, users can view clash details, apply filters to refine clash results for a comprehensive analysis of conflict origins and impacts and elevate clashes as issues to address them as interconnected components of a wider issue.


Follow the below steps to view the clash results,

  1. Select Projects from the side Navigation bar and choose the required Project

Clash Results

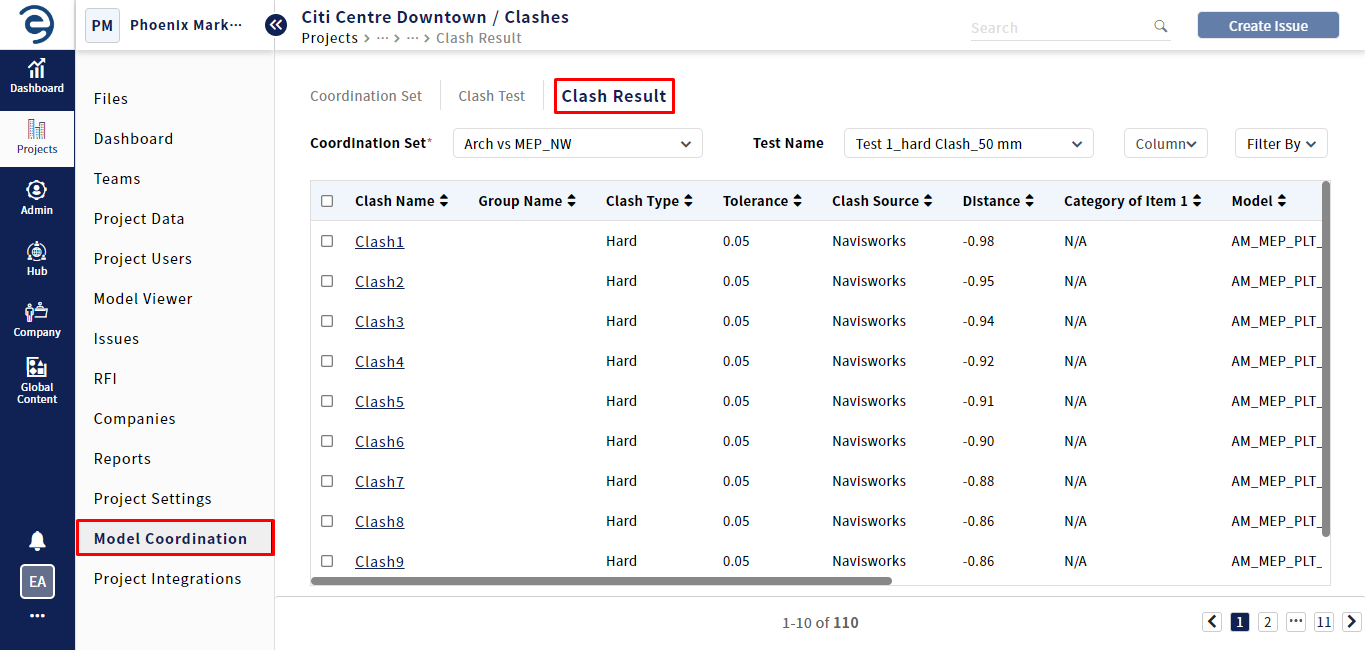

  1. Select Model Coordination > Clash Result, choose a coordination set from the drop down, and then select a test name from the list to access clash results

Clash Results (Cont.)

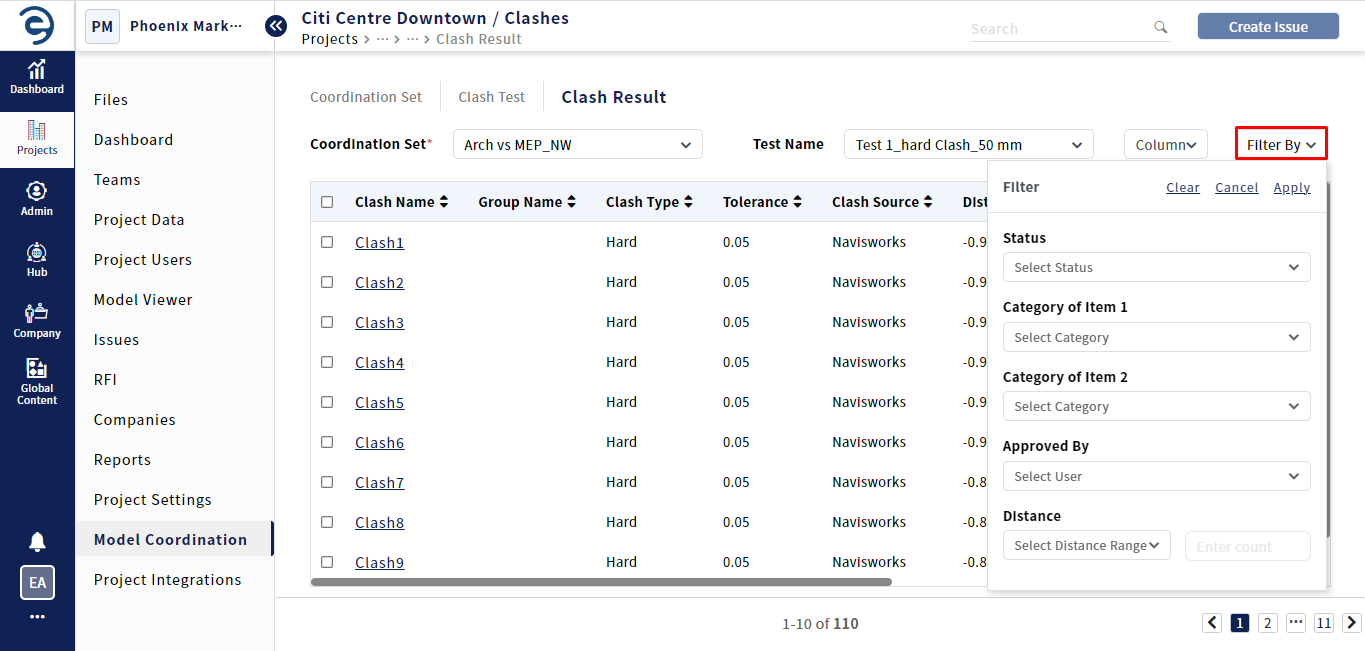

  1. Click on the Filter By option to quickly find or narrow down Clashes based on specific criteria such as Status, Category of item 1, Category of item 2, Approved By, and Distance

Clash Results (Cont.)

  1. To customize the clash columns, click on the Columns option and select the required columns that suits the clash table

Clash Results (Cont.)
