The Model viewer offers a seamless viewing experience of project models published from leading CAD & BIM software through both web and app based viewers. It  offers a following options to enhance the usage and intractability within the viewer.

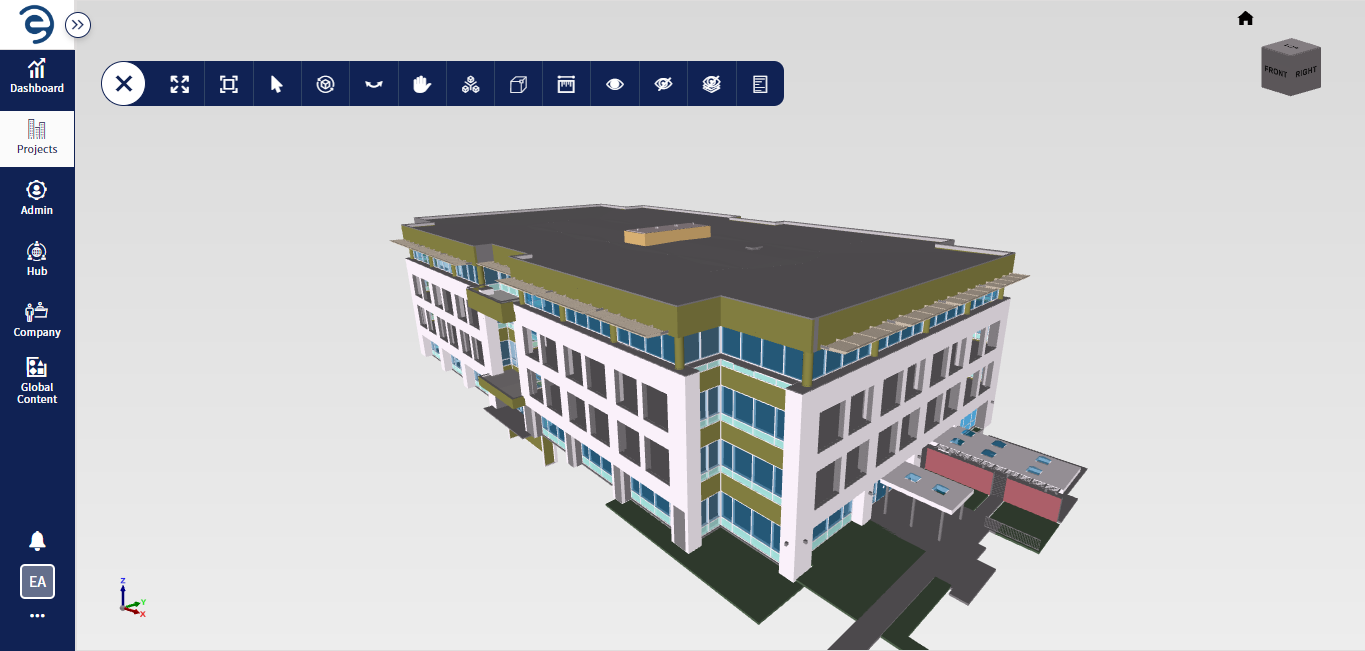

Viewer Overview


SI: No

Tool

Description

1

Full Screen

Maximize your work area at full screen

2

Fit to Screen

Sets the zoom level to whatever it needs for the model to fit entirely within the viewable area of the viewer window

3

Arrow Select

Select the elements by clicking on it

4

Rotate

Rotate the model perspective by clicking and dragging within the viewer

5

Look Around

View the model in a point of 360 degrees

6

Pan

Move the scene area around in the viewer to view previously hidden areas

7

Section Clipping

Clips the model based on its selected coordinate axis using Section Clipping

8

Box Clipping

Clips the entire model based on box clipping planes (6-primary face)

9

Measurements

Measure the dimension of the model in viewer as Point to Point, Face to Face, Edge to Edge, Face to Point, Face to Edge, Edge to Point, and Edge Measurement

10

Show Elements

Restore or unhide the elements if they has been hidden

11

Hide Elements

This Tool will help you to hide the element

Hide elements through selection, focus on the specific details

12

Hide by Category

Hide elements by category wise through selection of specific element in the viewer

13

Properties

View the properties of the selected element

14

Viewer setting

Appeared at Model Directory tab, configure desired unit system, graphic, and background colour

15

View Cube

It is a persistent, clickable and draggable interface that users can switch model perspective as per preference

Viewer Overview Options
