The Link Revit option enables users to link the workshared Revit files fetched from Design module within the Enginero project to the active workshared Revit model, facilitating collaboration with various revit models as needed. Follow the step below to link the Revit file,

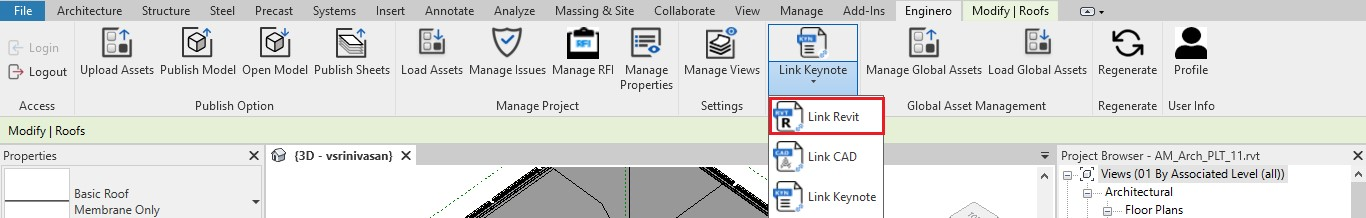

  1. Click on the Link Revit option located under the Enginero tab from the ribbon panel



Link Revit

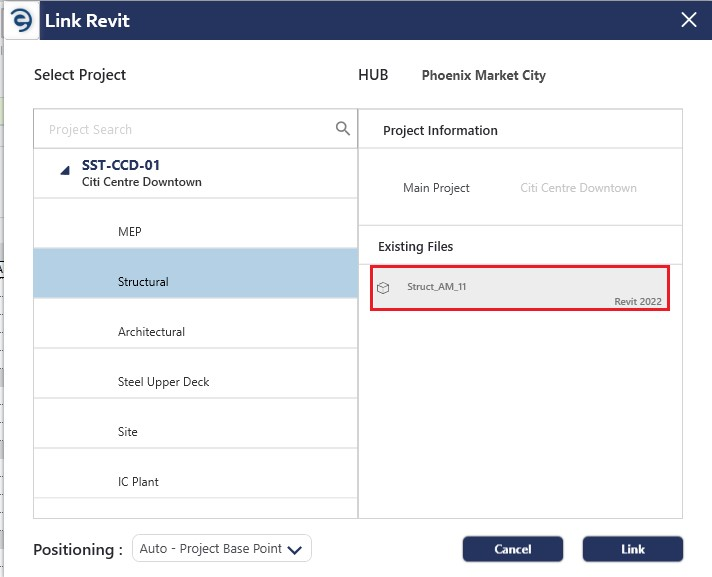

  1. Choose the necessary Workshared Revit model from either the Project or its associated team

Link Revit (Cont.)

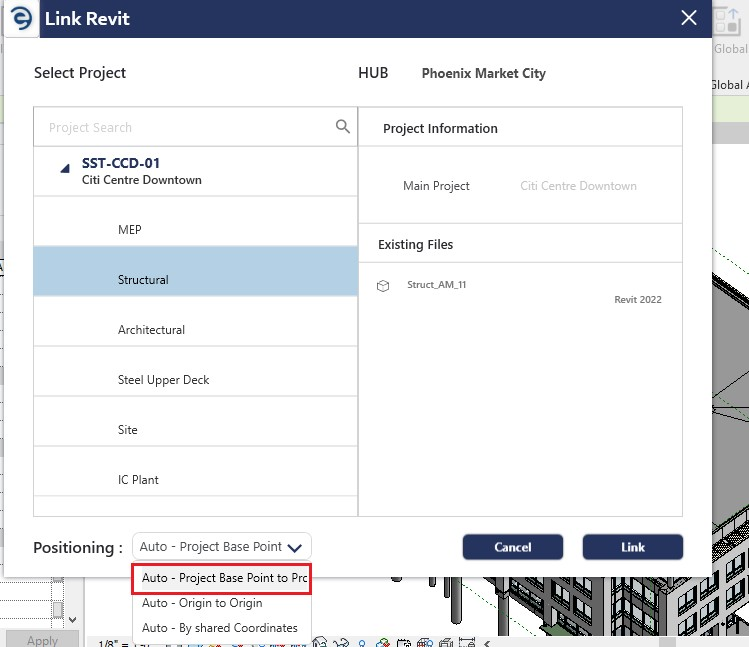

  1. Define the desired Positioning and click the Link button to link the selected model into the active Revit model

Link Revit (Cont.)

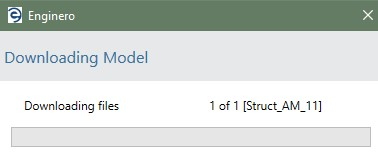

  1. Now, the selected model is downloaded and linked to the active Revit model

Link Revit (Cont.)

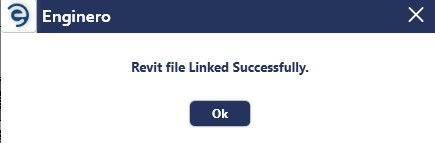

  1. After successfully linking the Revit file, an acknowledgement message will be displayed

Link Revit (Cont.)

  1. Enginero displays a warning pop-up when users attempts to link a model in Revit that is already linked

Link Revit (Cont.)

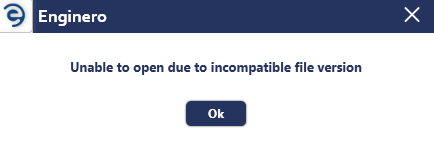

  1. Enginero displays a warning pop-up when users attempts to link Revit files that are not compatible with the active Revit file version

Link Revit (Cont.)
