Users can elevate 3D markup as a 3D markup based issue if it is required to change into an issue. This type of issue can be created by following the below steps,

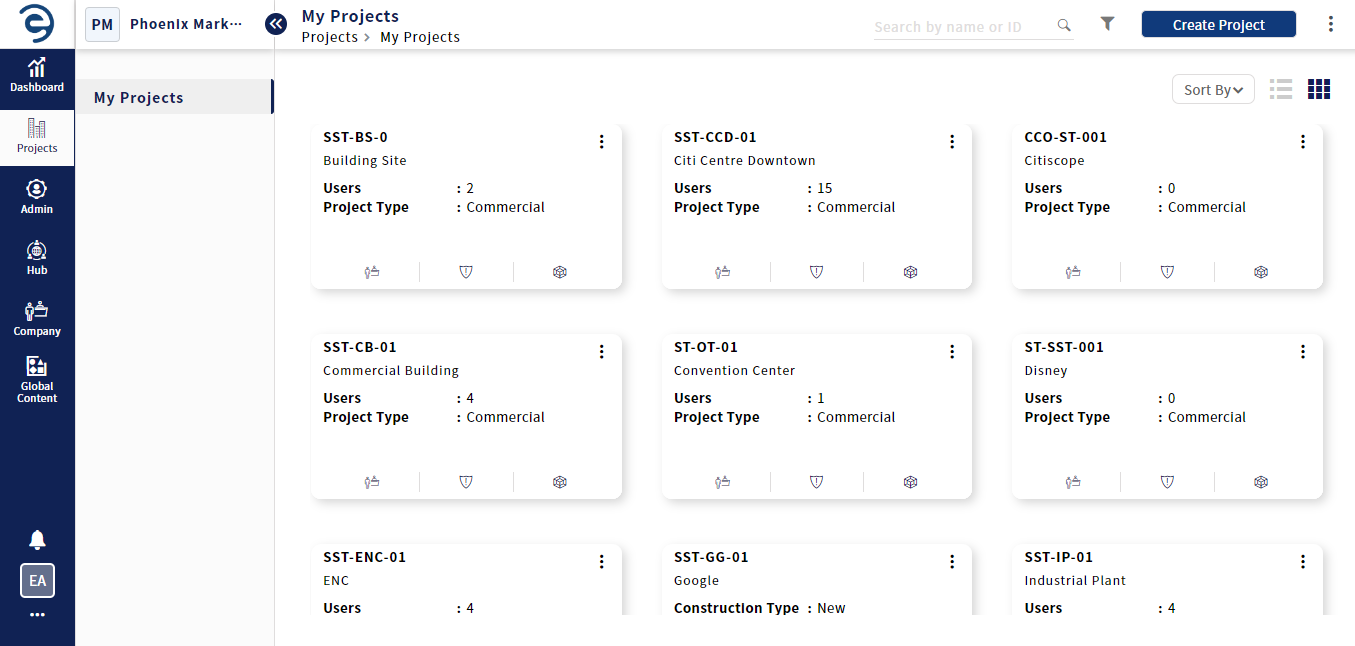

  1. Select Projects from the side Navigation bar and choose the required Project

Choose the required Project

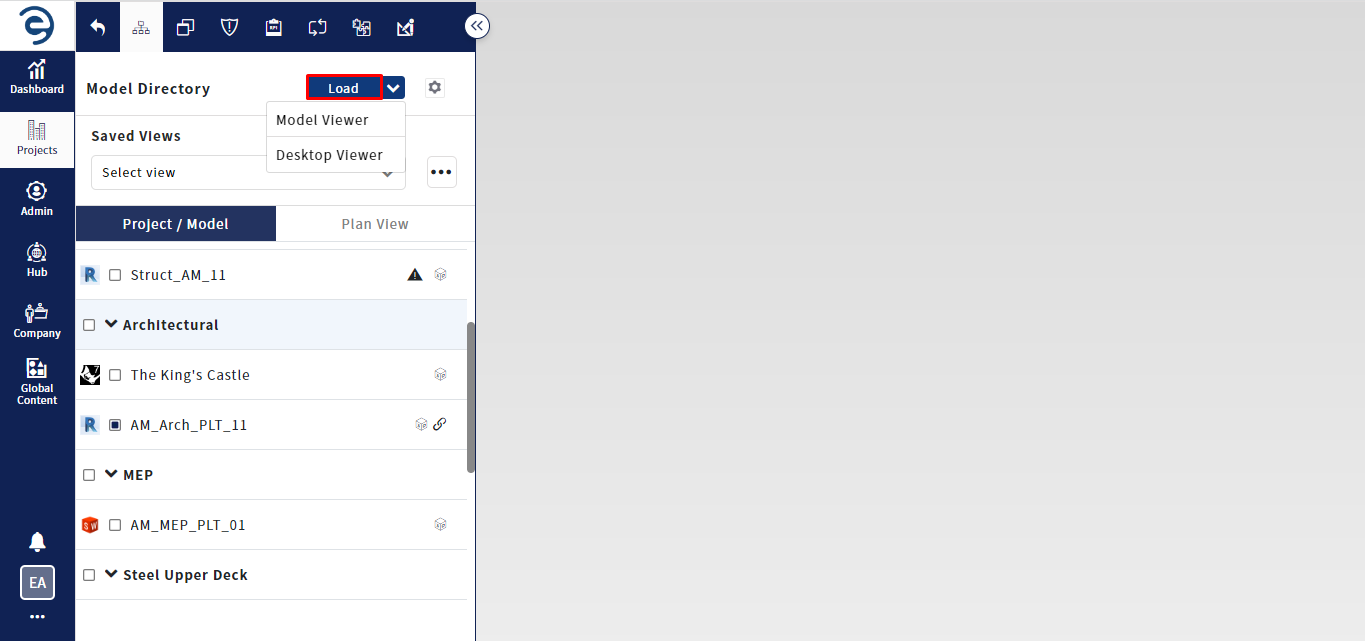

  1. Select Model Viewer module in the inner side Navigation and select the desired models from the directory to load them into the viewer by clicking directly on the Load button or choosing a preferred Viewer option from the drop-down

Loading a Model

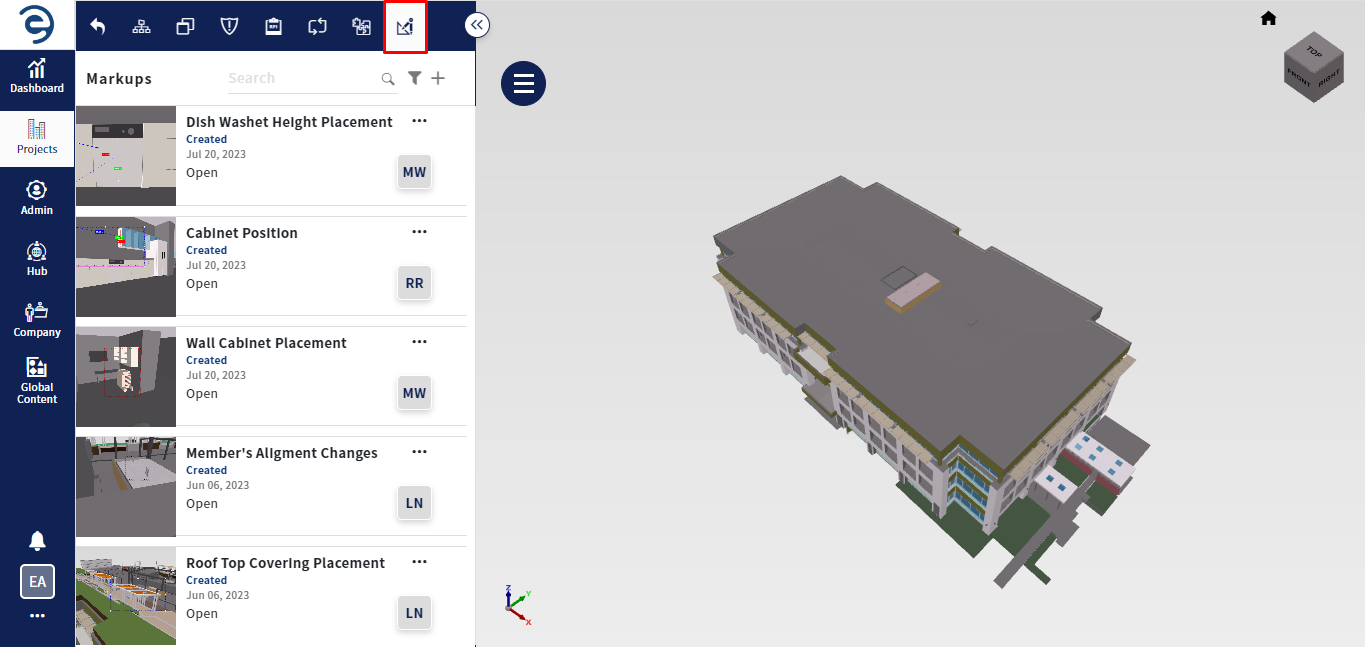

  1. Select the Markup tab to view markups related to the loaded model

Creating a 3D Markup Based Issue

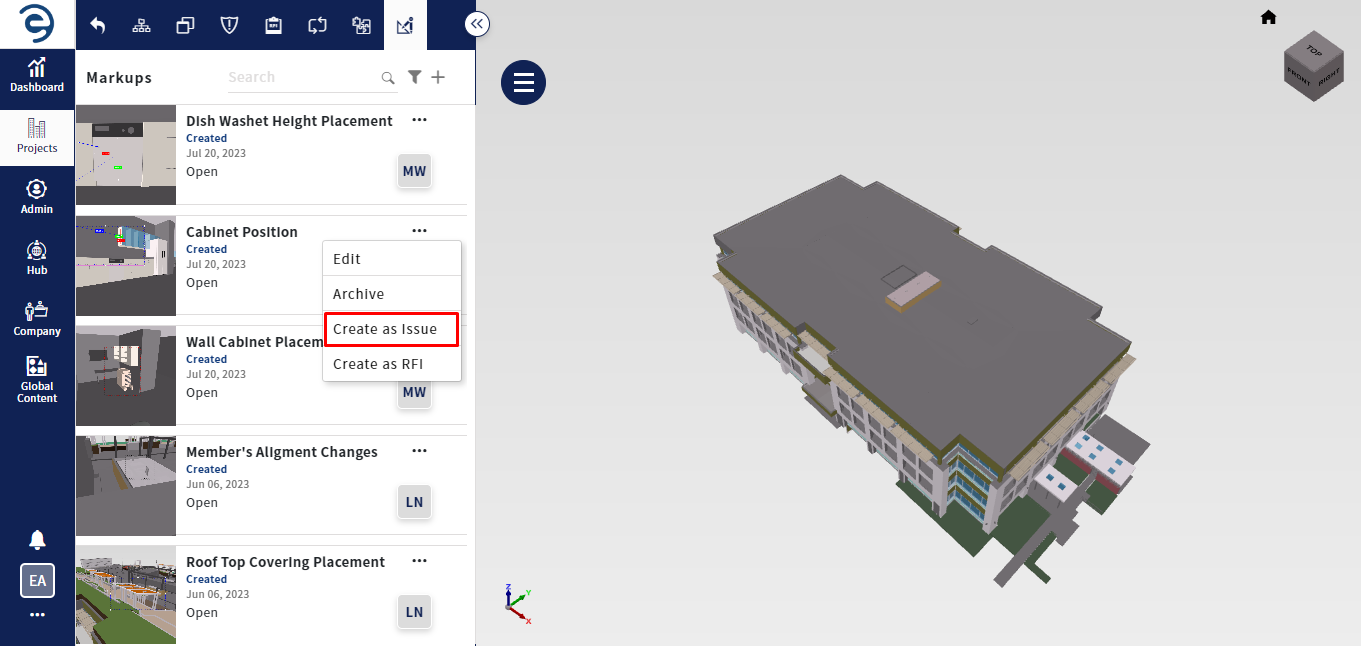

  1. Click on the ellipsis icon from the 3D markup that needs to be elevated as an issue and choose the Create as Issue button

Creating a 3D Markup Based Issue (Cont.)

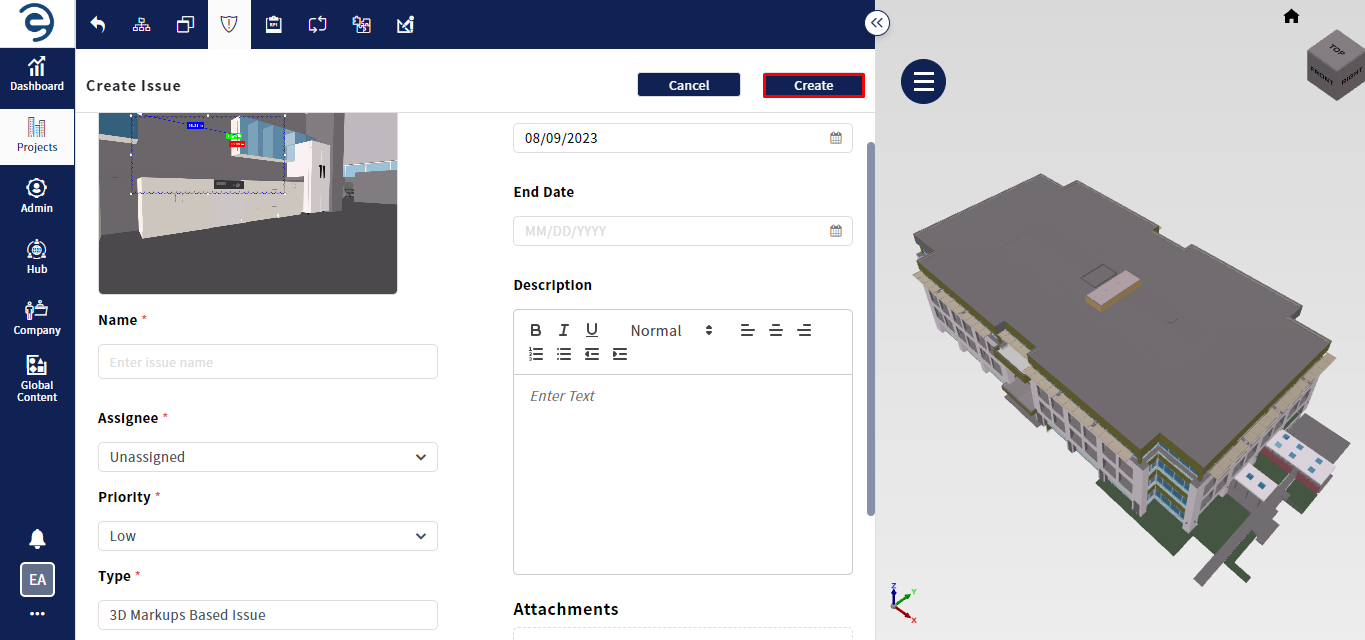

  1. Enter the Mandatory Fields which will be marked with “*”, and click on the Create button to complete the process

Creating a 3D Markup Based Issue (Cont.)
