Users can elevate 2D markup as a 2D markup based issue if it is required to change into an issue. This type of issue can be created by following the below steps,

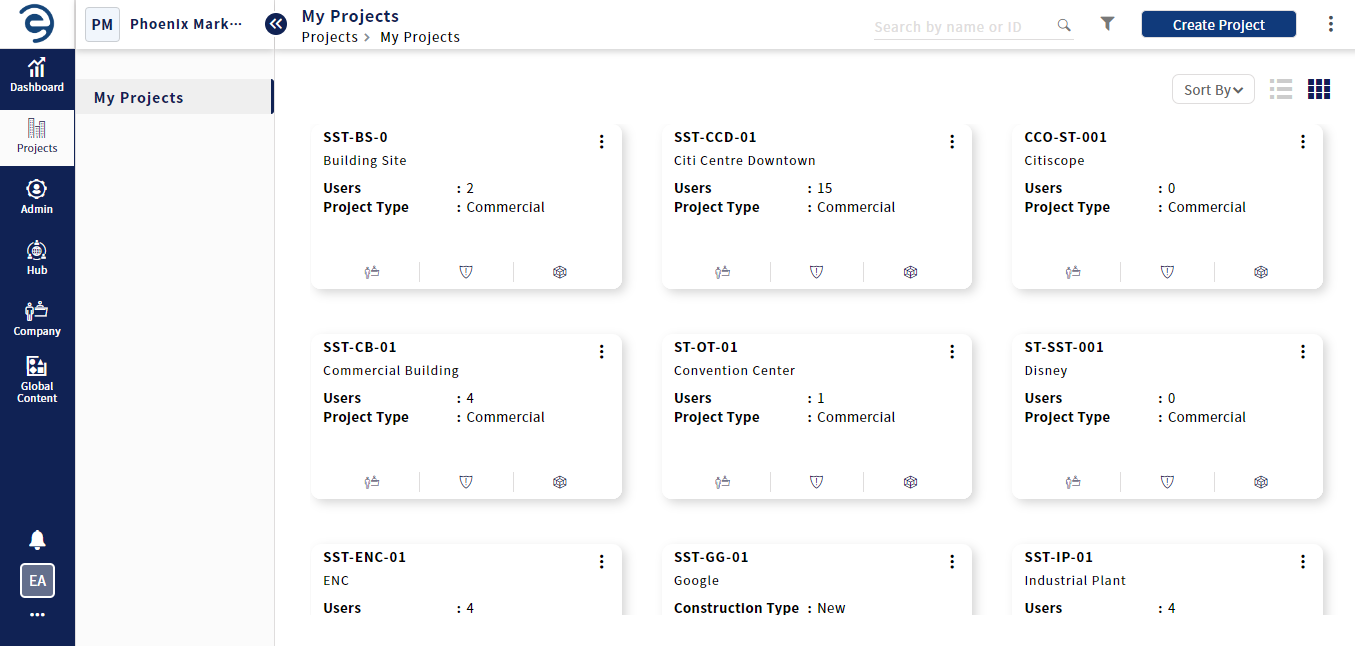

  1. Select Projects from the side Navigation bar and choose the required Project

Choose the required Project

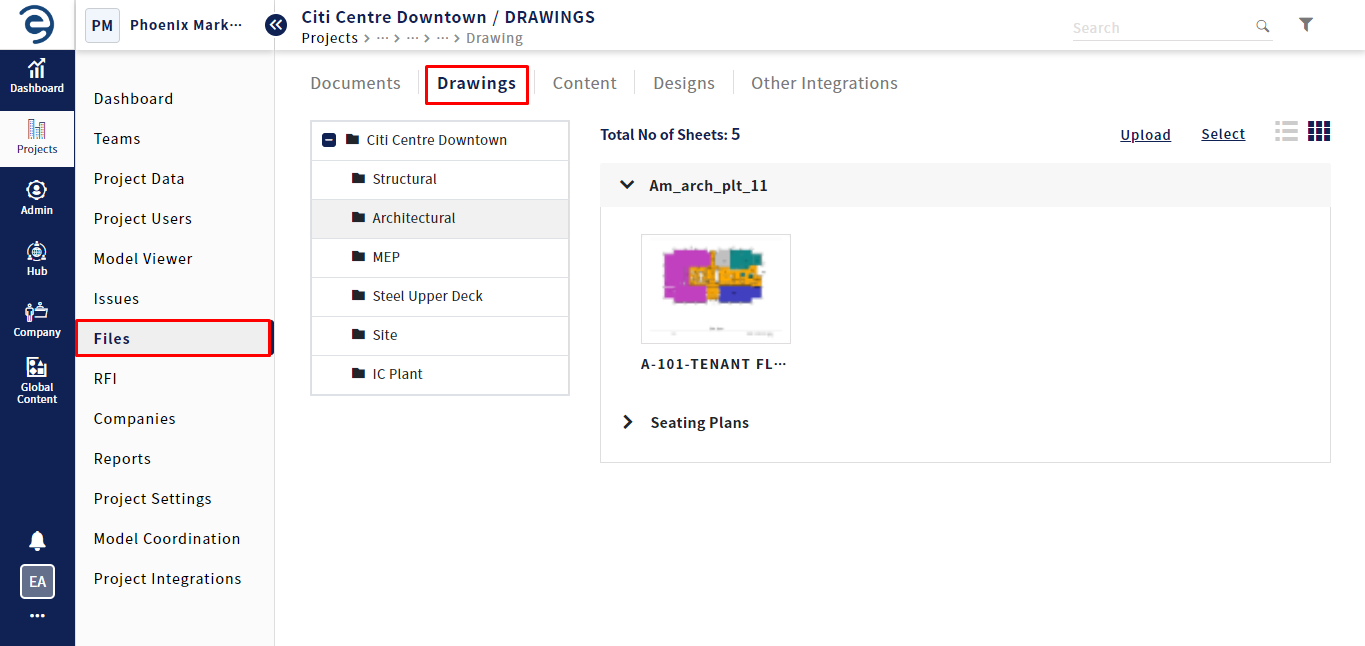

  1. Select Files > Drawing option and select the desired drawing file to access the Markups related to it

Creating a 2D Markup Based Issue

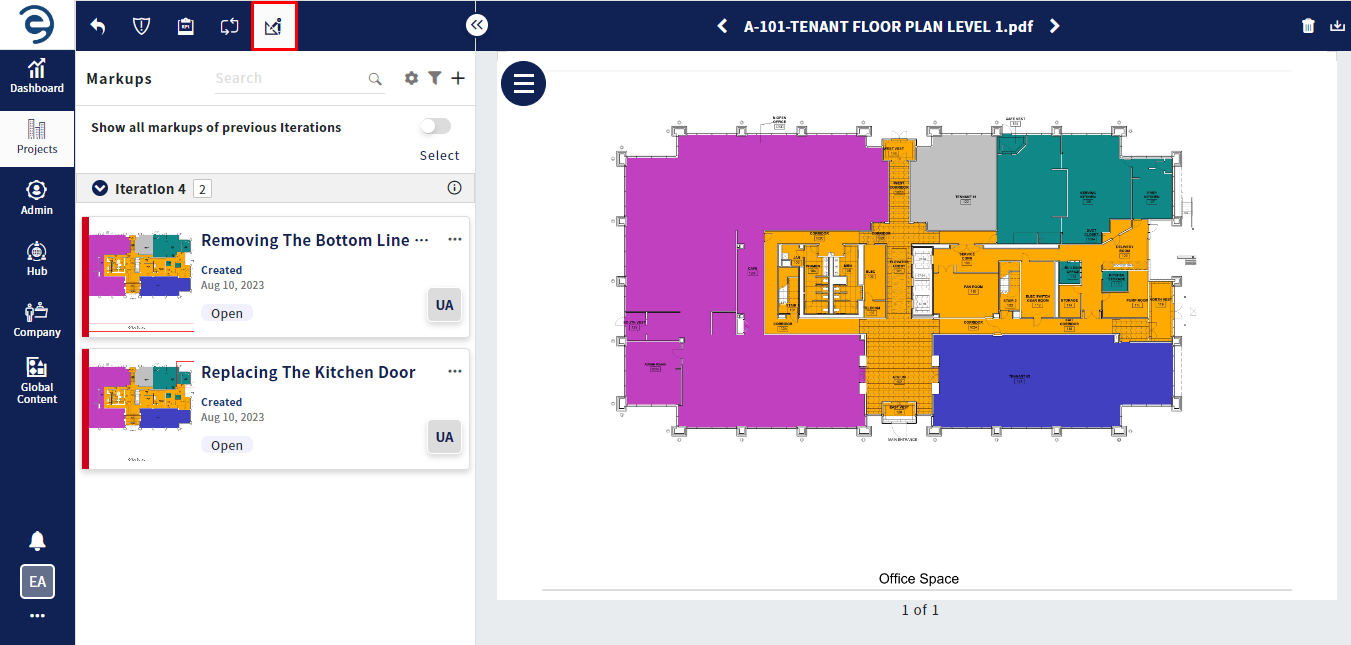

  1. Select the Markup tab to view all markups related to current iteration of the drawing

Creating a 2D Markup Based Issue (Cont.)

  1. Click on the ellipsis icon from the 2D markup that needs to be elevated as an issue and choose the Create as Issue option

Creating a 2D Markup Based Issue (Cont.)

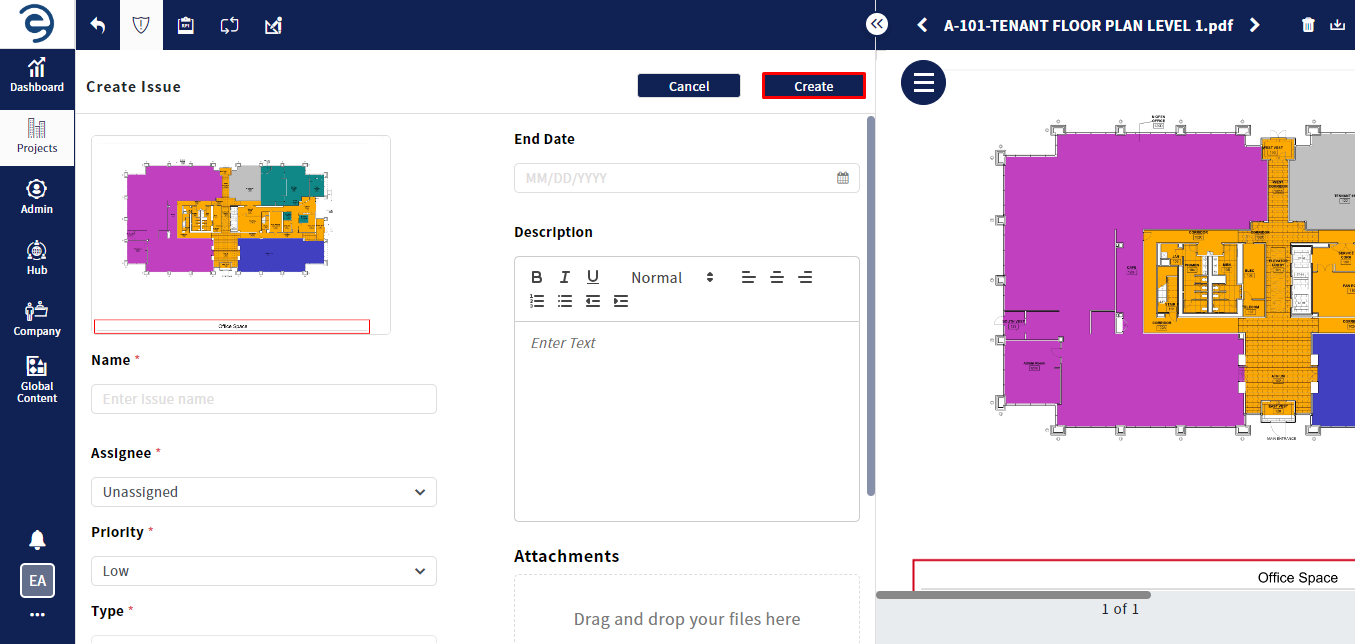

  1. Enter the Mandatory Fields which will be marked with “*” and click on the Create button to complete the process

Creating a 2D Markup Based Issue (Cont.)

Notes:

    • Users can view all markups from previous iterations of the drawing by toggling the button "on"
