BOQ Reports can be generated based on the BOQ Template and exported in different formats. The BOQ Templates can be created by setting rules/conditions related to the properties. By default, the General BOQ template is configured with read-only access. Users can create custom BOQ templates to be used across projects within the Hub for generating the BOQ report.


Follow the below steps to create a custom BOQ Template,

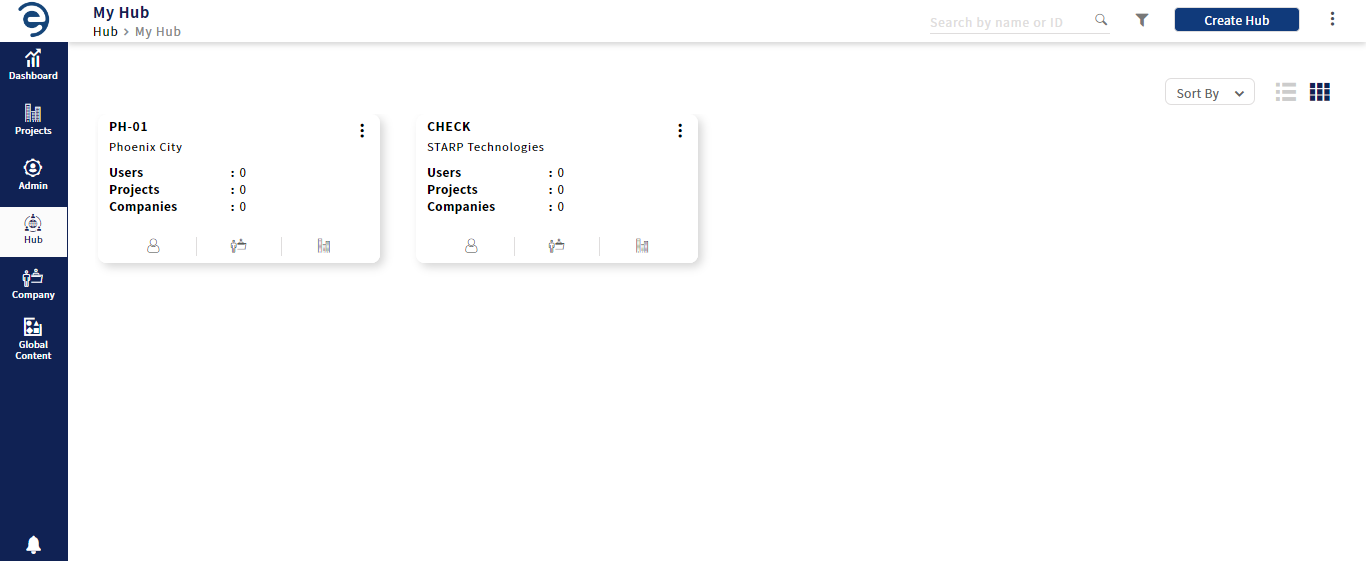

  1. Select Hub from the side Navigation and choose the desired Hub from the listed Hubs

Creating a BOQ Template

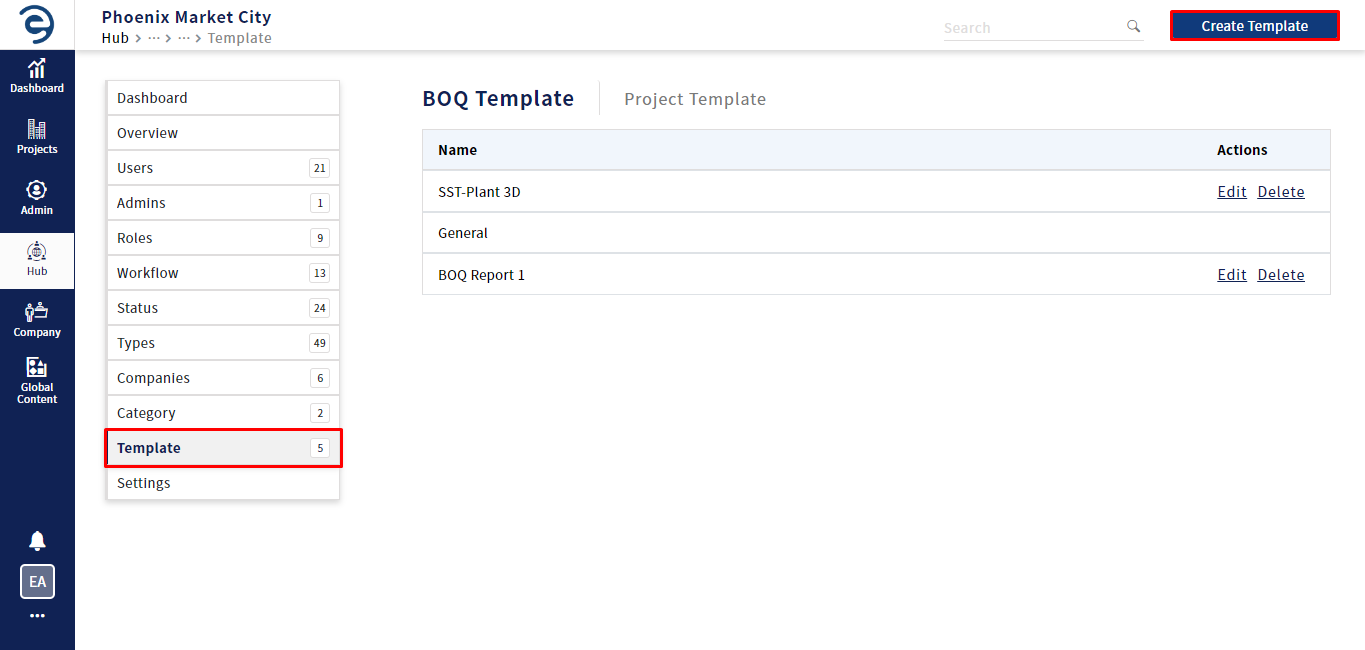

  1. Select the Template >BOQ Template option and click on the Create Template button (on Top Right)

Creating a BOQ Template (Cont.)

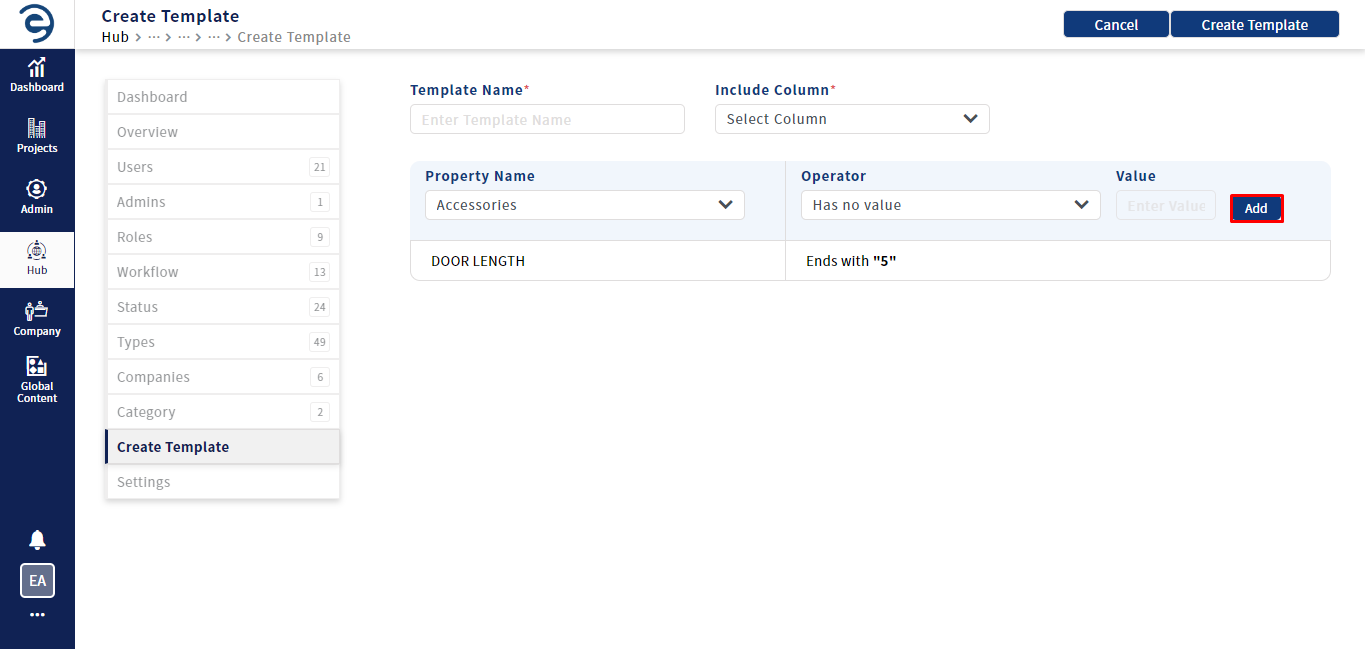

  1. Now provide the Property Name, Operator, & Value fields and click on Add button to set the Rule. Single/Multiple Rules can be defined.

Creating a BOQ Template (Cont.)

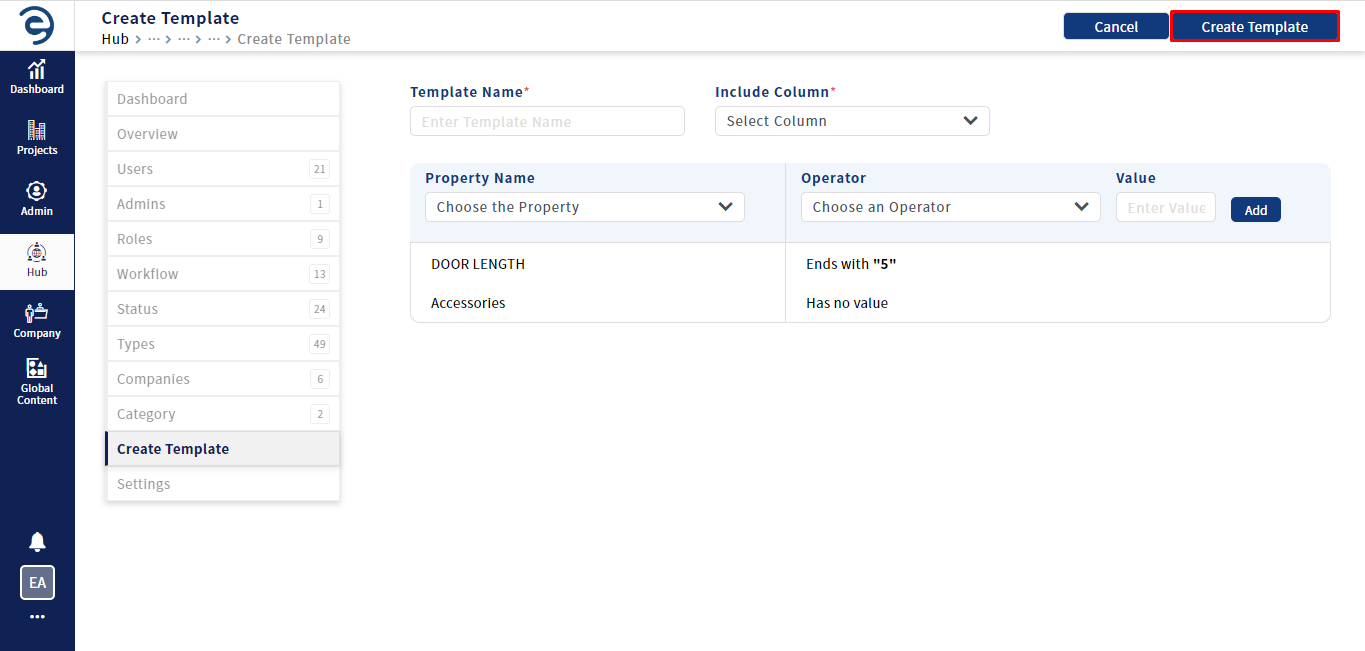

  1. On adding all the required Rules, enter the Mandatory Fields which will be marked with “*”, and click on the Create Template button to complete the process.

Creating a BOQ Template (Cont.)

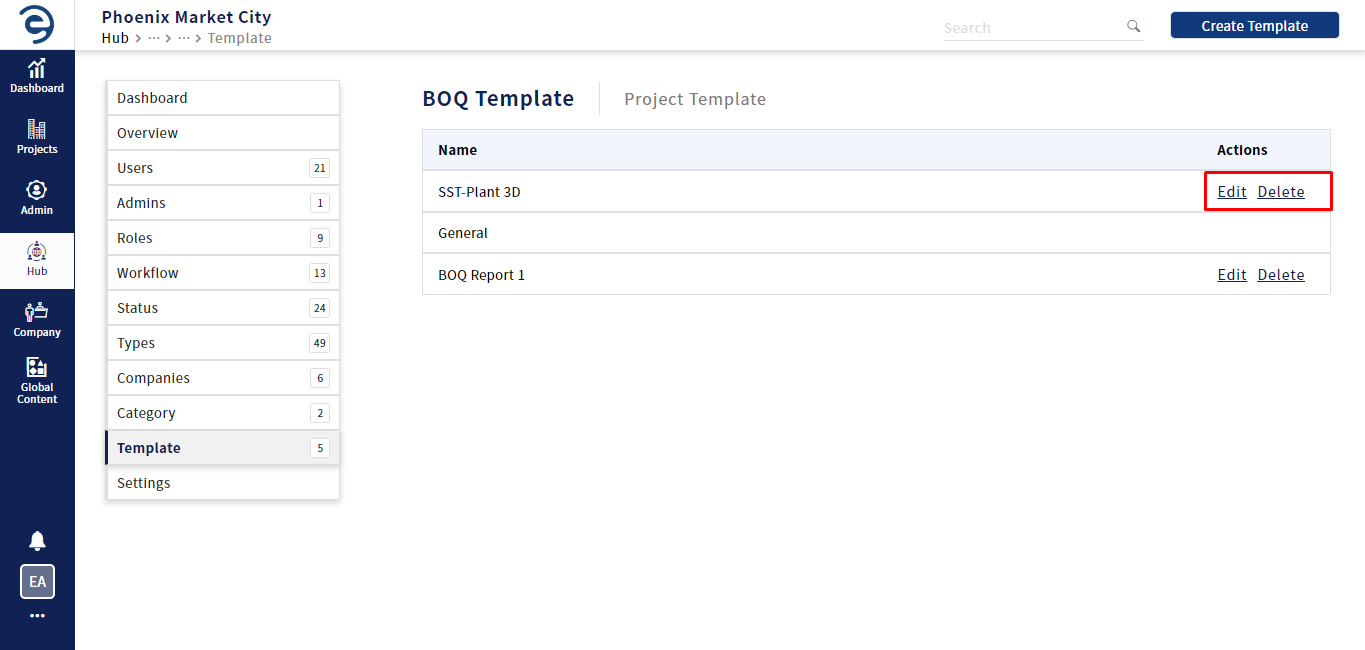

  1. On successful creation of BOQ Template, the Edit and Delete icon will be shown

Creating a BOQ Template (Cont.)

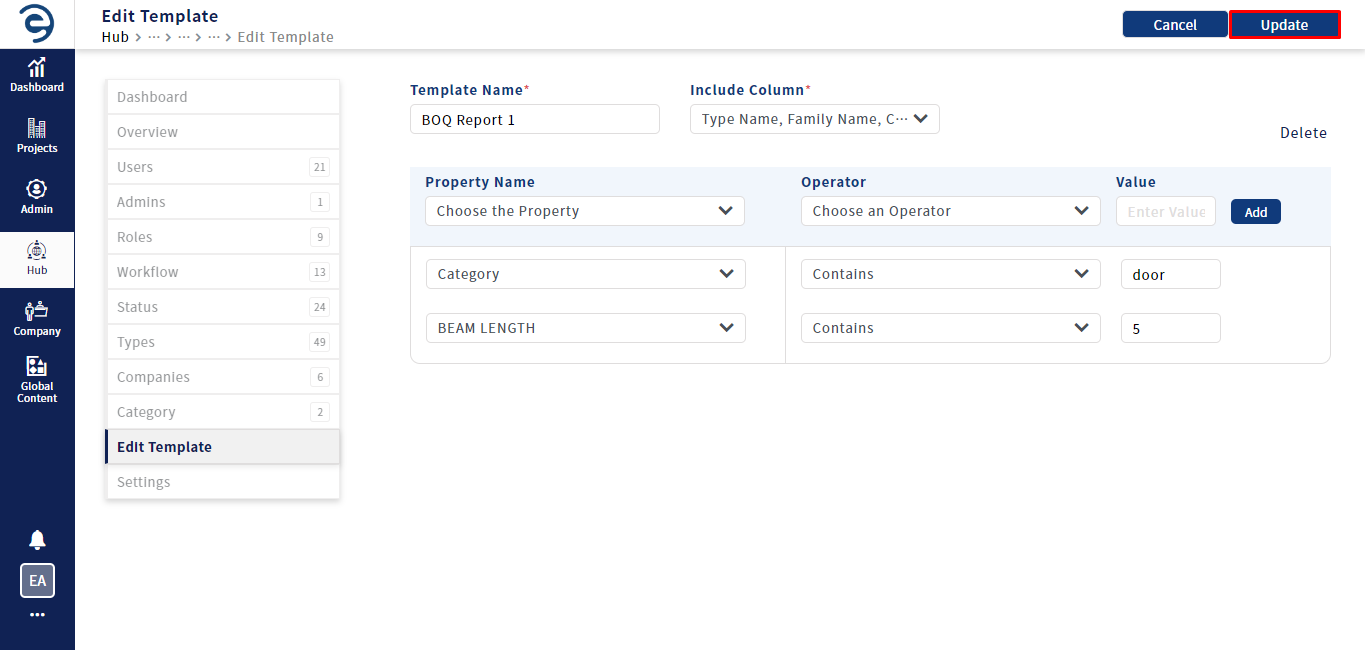

  1. Click on Edit Icon to modify the Template Name, Column, and Rules. Once changes are made, click on Update button to complete the process

Creating a BOQ Template (Cont.)

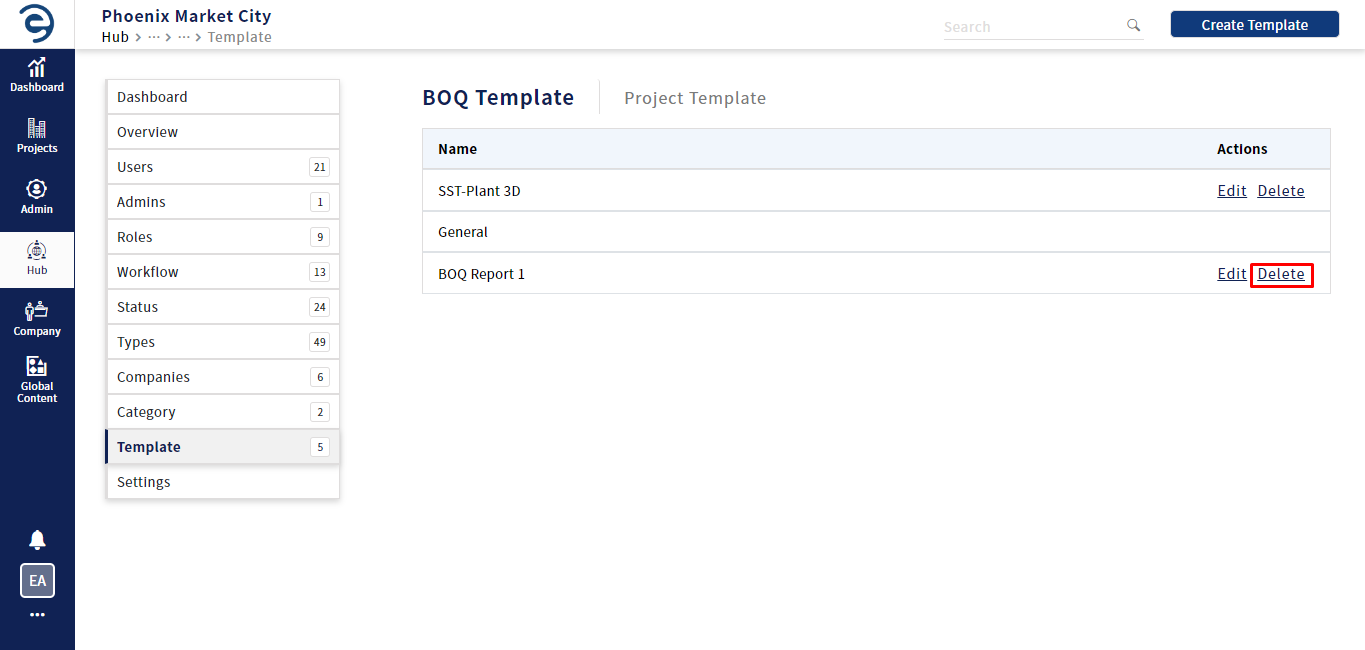

  1. Click on Delete icon to delete the BOQ Template

Creating a BOQ Template (Cont.)

Notes:

    • “General” is a default template which cannot be edited or deleted
