Property Based Issue is created from properties of the element, part, or assembly properties. Follow the below steps to create a Property Based issue,

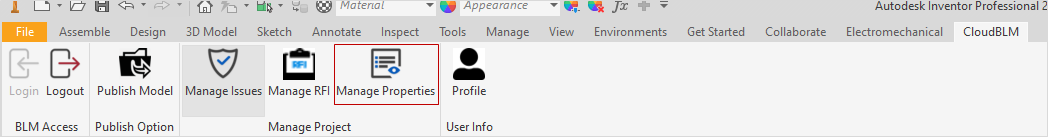

  1. Click on the Manage Properties option under Enginero tab from the ribbon panel

 Plugin Ribbon Panel

  1. Select the element in the Inventor model. In properties window will shows all the properties about the selected element

Creating a Property Based Issue

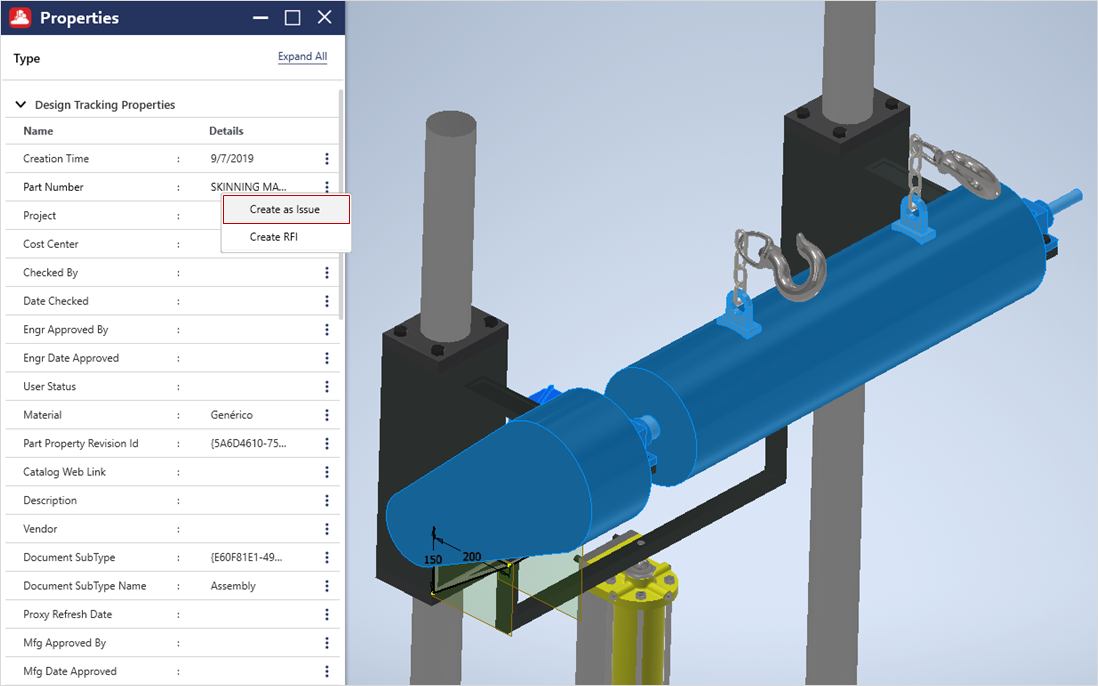

  1. Click on the Ellipsis Icon in which element you need to create the issue and select Create as Issue option

Creating a Property Based Issue (Cont.)

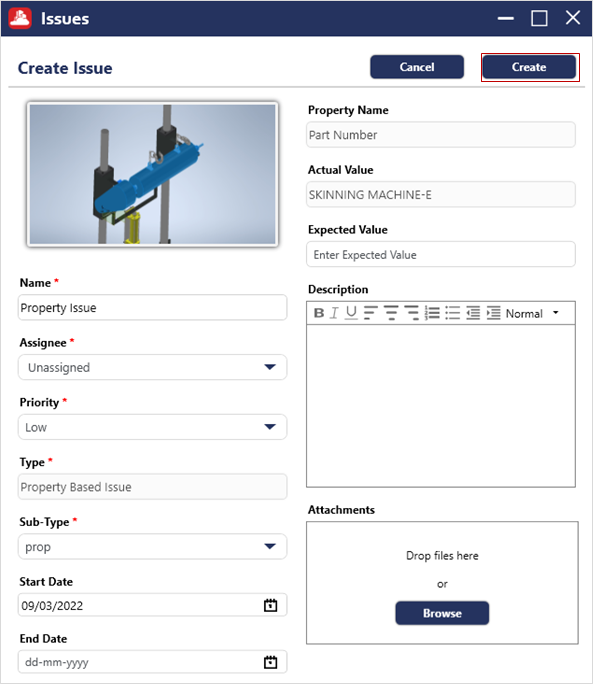

  1. Enter the Mandatory Fields which will be marked with “*”, and click on the Create button to complete the process

Creating a Property Based Issue (Cont.)

  1. After the Issue is created, an acknowledgment message will be displayed

Creating a Property Based Issue (Cont.)
