Viewpoints are snapshots taken of the model from Navisworks that show as a scene view. Users can create an Issue from Viewpoint within the Navisworks application. Follow the below steps to create an issue from viewpoint


  1. Click on the Manage Issues option under Enginero tab from the ribbon panel

 Plugin Ribbon Panel

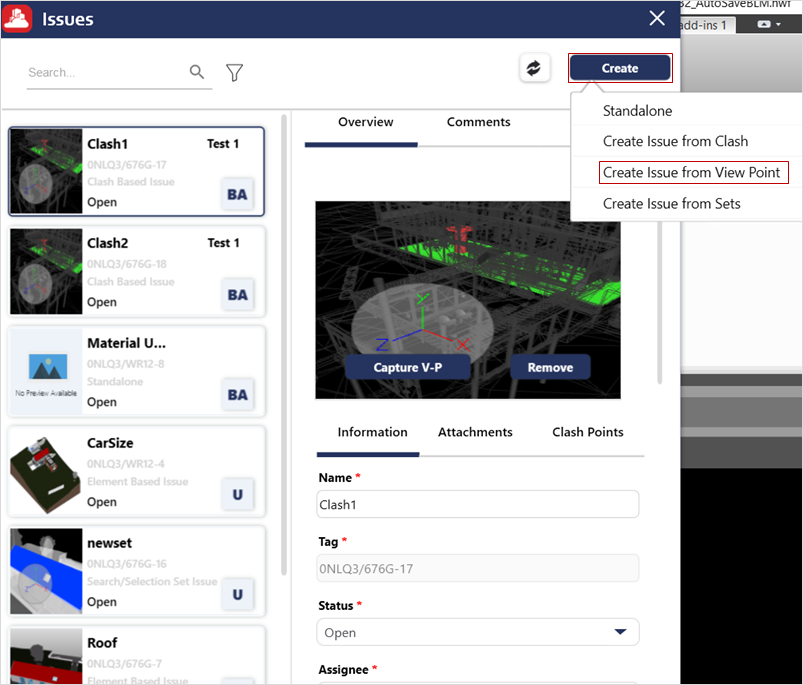

  1. On left side shows all the issues related to the Coordination Set. Click on Create Button and select Create Issue from Viewpoint option

Creating Issue from Viewpoint

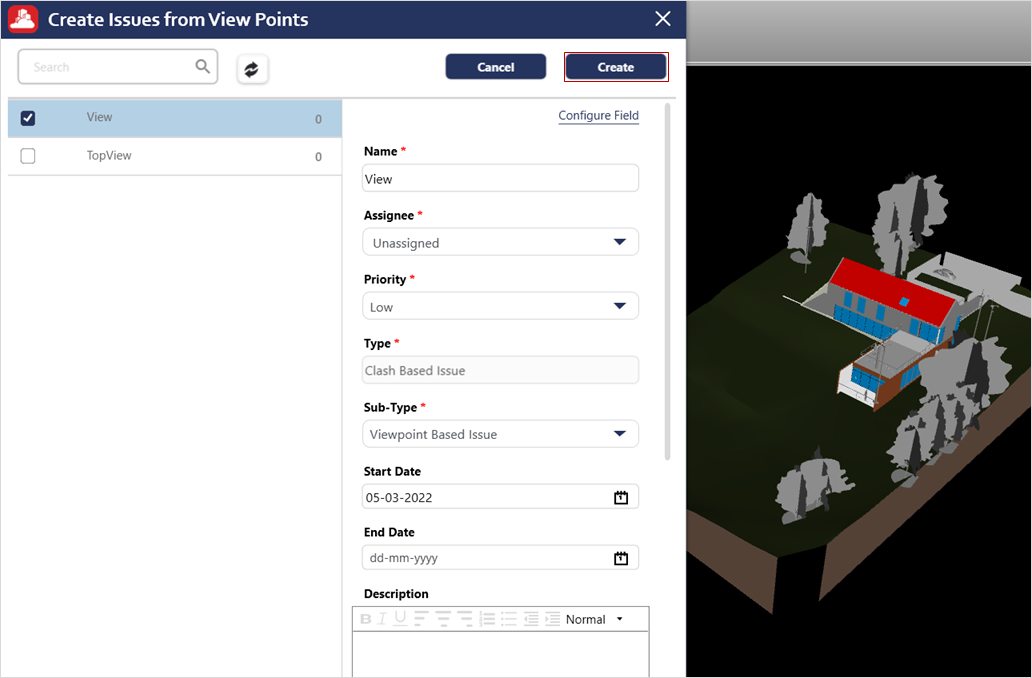

  1. Select Created viewpoint, enter the Mandatory Fields which will be marked with “*”, and click on the Create button to complete the process

Creating Issue from Viewpoint (Cont.)

  1. After the Issue is created, an acknowledgment message will be displayed

Creating Issue from Viewpoint (Cont.)
