With the Coordination Sets, users can group the models related to Project. Follow the below steps to create a Coordination Set,

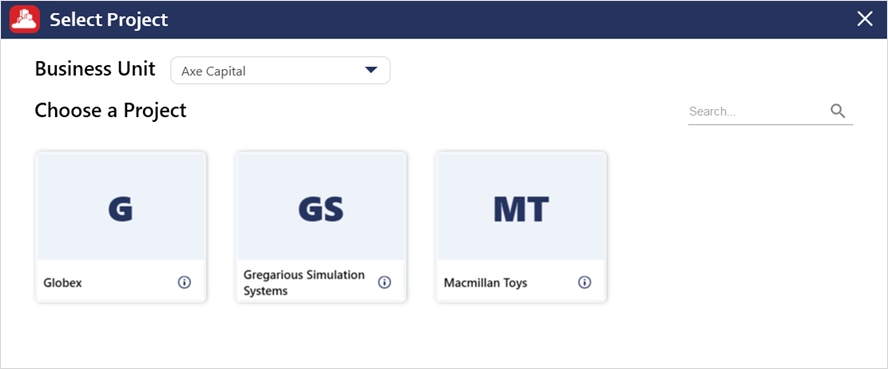

  1. After logging into the Navisworks application. By default, Project selection UI will appear to users
  2. Select the required Hub from the drop down and select the Project in which need to Create Coordination Set

Project Selection

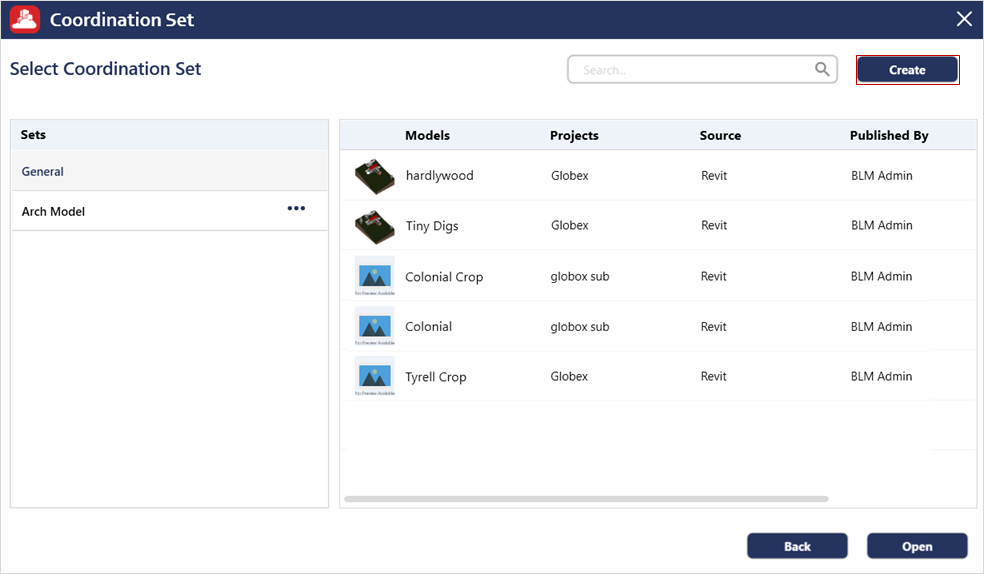

  1. On left side shows all the Coordination Sets related to the Project. Click on the Create button (on top right)

Creating Coordination Set

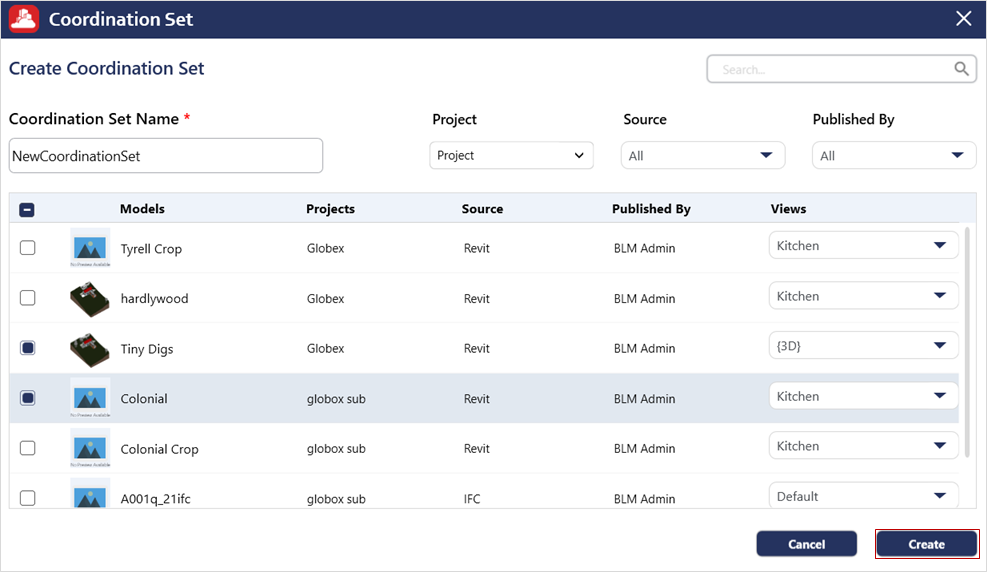

  1. Enter the Coordination Set name and select the desired model. After selection, click on Create button to complete the process

Creating Coordination Set (Cont.)

  1. Newly created coordination set that will be loaded into Navisworks
