Element Based issue is issues related to the element of a model. Follow the below steps to create an Element Based issue,

  1. Click on the Manage Issues option under Enginero tab from the ribbon panel

 Plugin Ribbon Panel

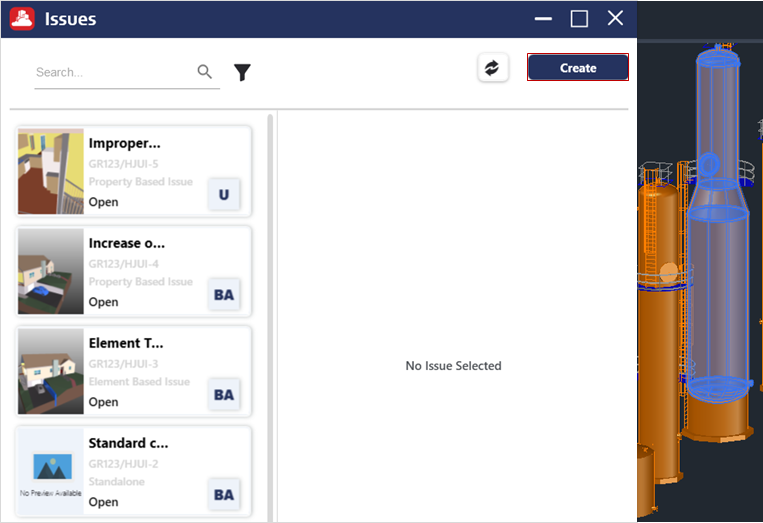

  1. Select the Element in the Plant 3D model and click on the Create button (on top right)

Creating an Element Based Issue

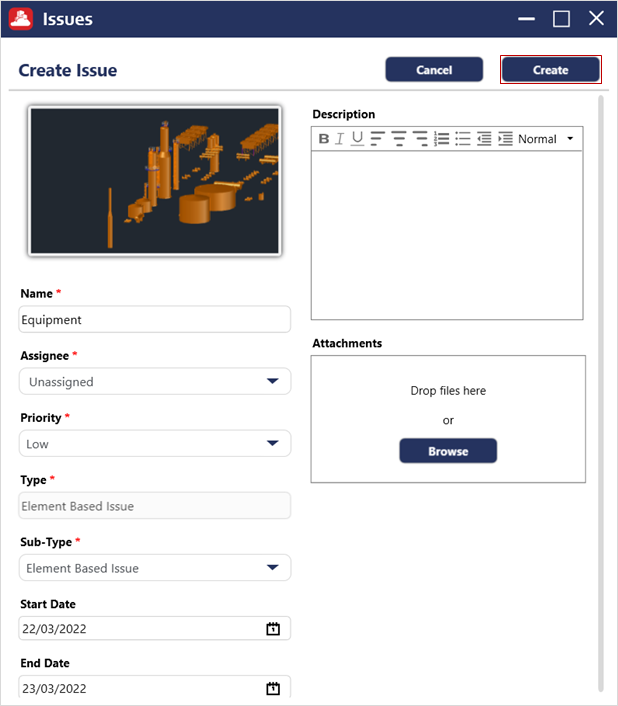

  1. Enter the Mandatory Fields which will be marked with “*”, and click on the Create button to complete the process

Creating an Element Based Issue (Cont.)

  1. After the Issue is created, an acknowledgment message will be displayed

Creating an Element Based Issue (Cont.)
